It can be used in replacement of Dukane 41S30, we can provide you same quality with lower price.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or NingboLead Time:
15

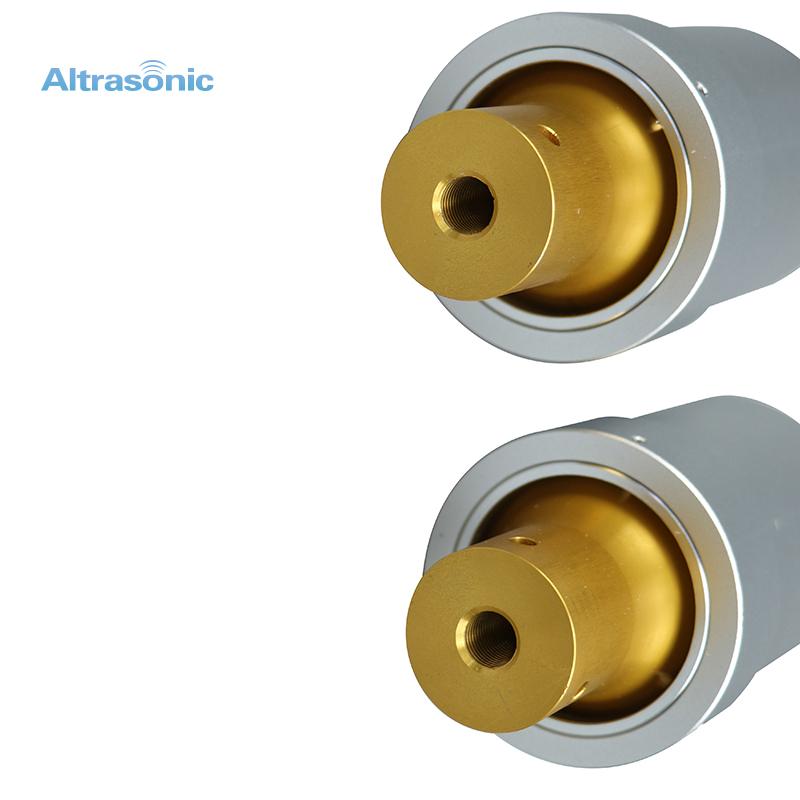

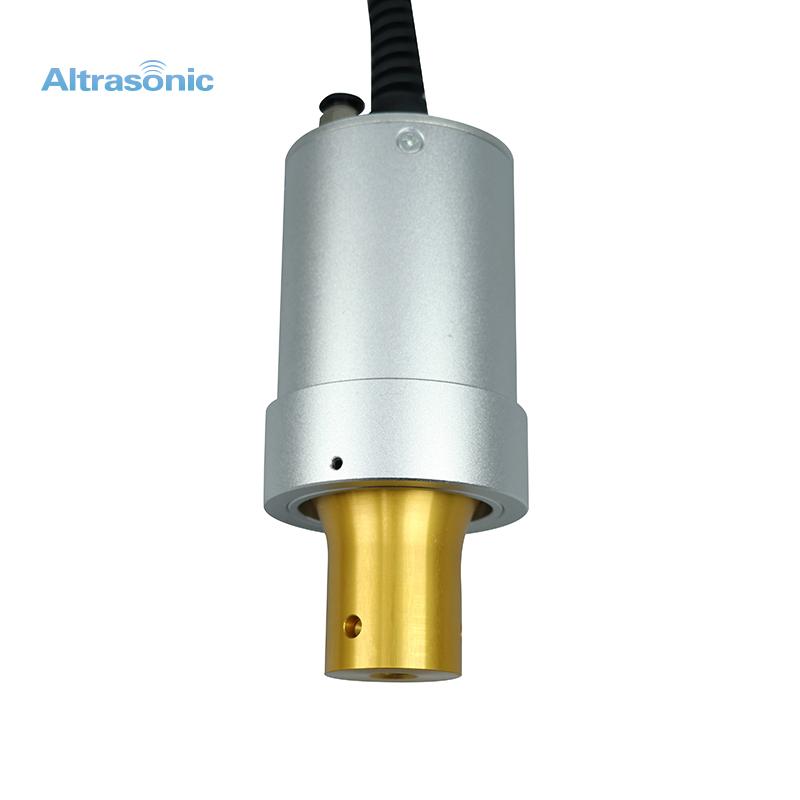

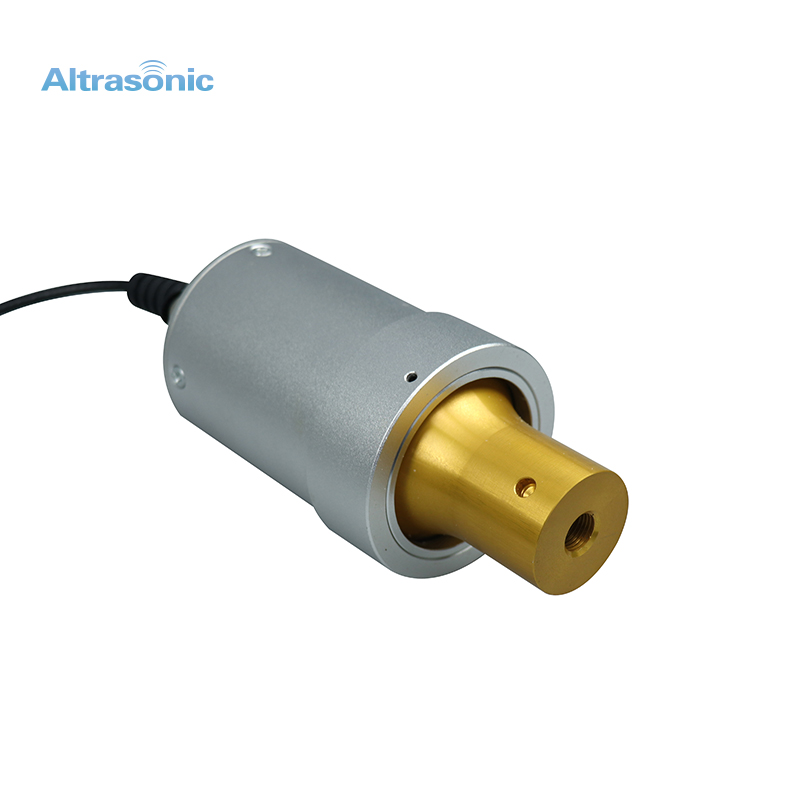

20 kHz High Power Replacement of Dukane 41S30 Ultrasonic Welding Transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
