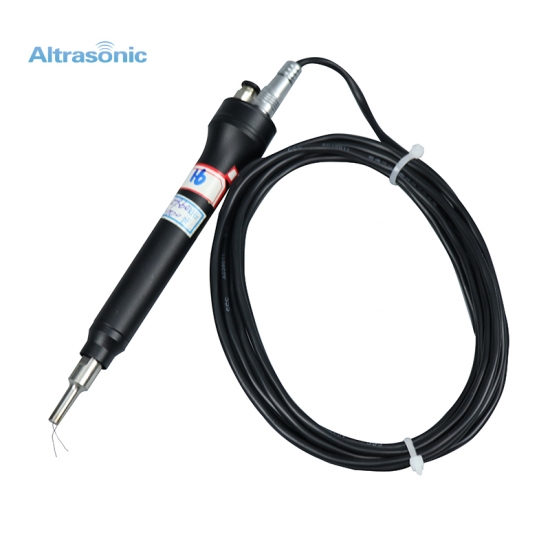

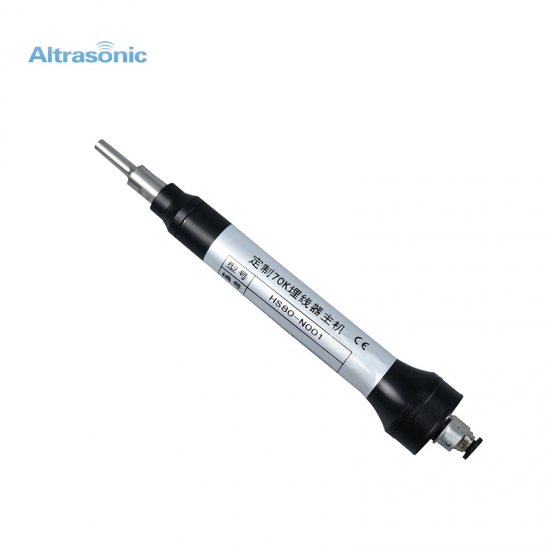

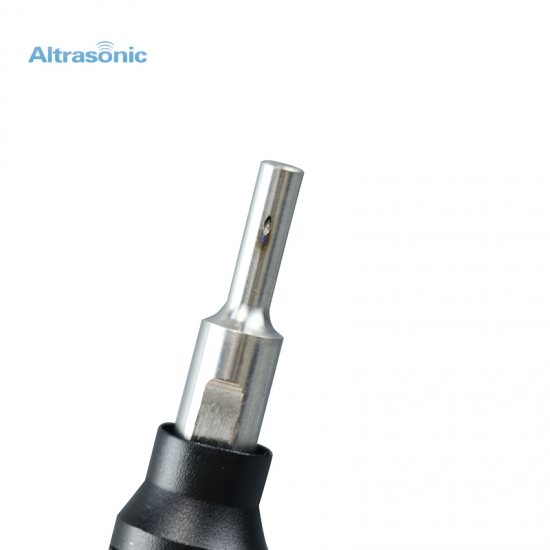

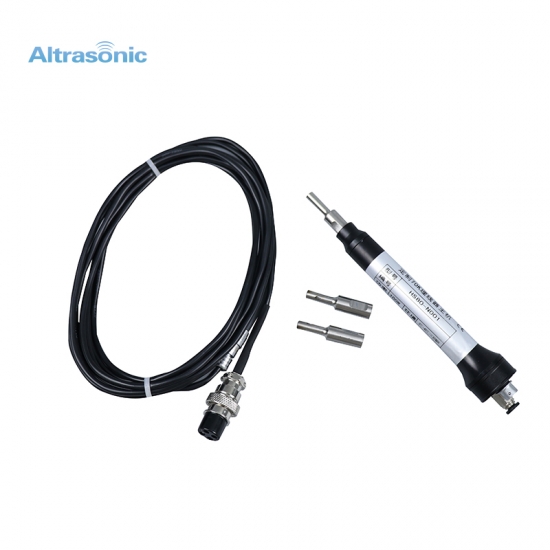

The 70khz transducer is a conventional high frequency transducer, usually used for ultrasonic embedding equipment or medical equipment.
Item No.:
HS-1070-2ZPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Silver and BlackShipping port:
Shanghai or Ningbo
Description:
The classification of ultrasonic welding is based on the direction in which ultrasonic elastic vibration energy is transmitted to the weldment. The basic types of ultrasonic welding can be divided into two categories. Among them, the vibration energy is tangentially transferred to the surface of the weldment to generate relative friction at the welding interface. This method is suitable for welding of metal materials. Common metal ultrasonic welding can be divided into spot welding, girth welding, seam welding and embedding. The ultrasonic embedding device uses ultrasonic embedding technology.
Specification:
Item No
HS-1070-2Z
Frequency
70 kHz
Power
100 watt
Joint bolt
M4
Ceramic dics diameter
10 mm
Ceramic dics quantity
2 pcs
Capacitance
0.34~0.4 nF
Amplitude
1 um
Application
Smart card coil wire embedding
Advantage:
1. Intelligent frequency search, prolong the service life of buried thread head by 2-3 times
2. No immersion tin is needed before soldering, reducing process and cost
3. The matching power is strong, the thread head and the ultrasonic generator can be interchanged arbitrarily
4. Multi-point power control, ultra-high-speed wire embedding, good consistency
5. Solve the problem of equipment heating when buried, and can work for a long time
Workshop:
CE:
Shipping:
Payment:
Previous :
70kHz 100Watt Smart Card Antenna Implanter Transducer Ultrasonic Embedding Piezoelectric Ceramic converterNext :
Ultrasonic Smart Card Antenna Welding Machine Transducer Antenna Welding converterIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
