40Khz Ultrasonic Kinfe For Cutting And Trimming
Item No.:
HS-C40Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
WhiteShipping port:
Ningbo or ShanghaiLead Time:
10

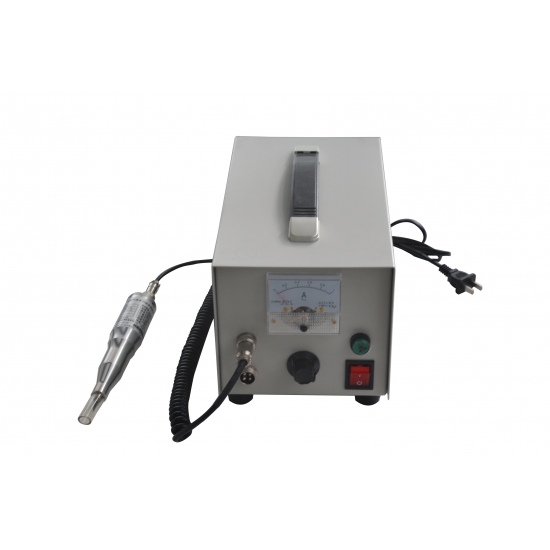

40Khz Ultrasonic Kinfe For Cutting And Trimming
| Item No.: | HS-C40 |
| Frequency: | 40kHz |
| Power: | 110Watt |
| Voltage: | 110V/220V |

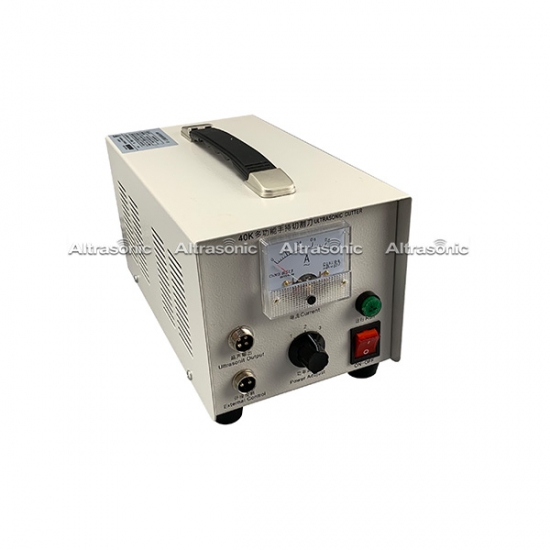

| Generator: | Analog Generator |

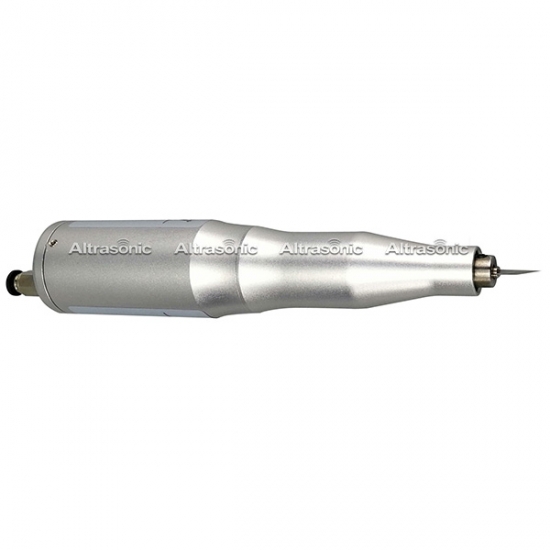

| Handle Size: | φ32*170 |
| Generator Size: | 155W*265L*170H |
| Blade: | 5pcs double-edged or 25pcs single-edged |
| Accessory: | Foot Switch, Blade, Cables and Handle |
| Application: | Plastic and Fabric |
Description:
Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Advantages:
1. Compact Design
The handle, oscillator, foot switch, cord, and other components all fit into a compact aluminum case. This makes it easy to carry and easy to store. The handle is light and easy to grip,enhancing operating ease.
2. Clean Cut
The tip of the blade generates 22,000 ultrasonic vibrations per second during cutting.
However, the operator does not feel any vibration as the cutter accurately follows the cut line and effortlessly produces a clean, even cut.
3. Easy Operation
Simply turn on the switch and begin cutting. No other adjustments are necessary.Even a first-time operator can use it with ease.
4. Safe And Economical
Oscillation of the blade is turned on or off by the foot switch. This means that booth hands can be used for safe cutting control. And the responsive switch helps conserve electrical power, boosting economical operation.
Previous :
Handheld 40kHz 100Watt Ultrasonic Slitter for Cutting Plastic Model BurrsNext :
Fast Cutting Non-woven Fabric Ultrasonic KnifeIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The applicable materials of ultrasonic wave sealing and cutting include: 100% of synthetic fiber, such as nylon, polyester, polypropylene, some polyethylene, modified acrylic resin, vinyl compounds, carbamate compounds, thin films, coated paper, etc.
Mainly used in many kinds of plastic materials，such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic handheld cutting machine suitable for materials with thickness 7mm.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
