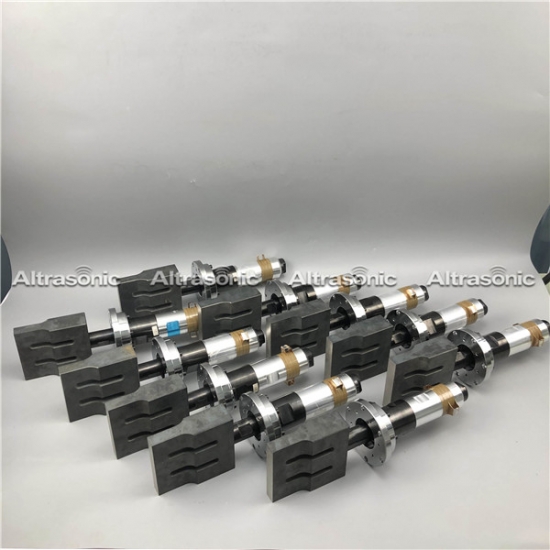

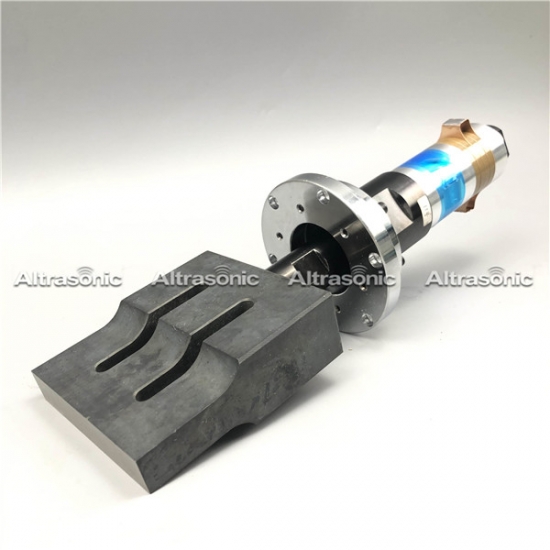

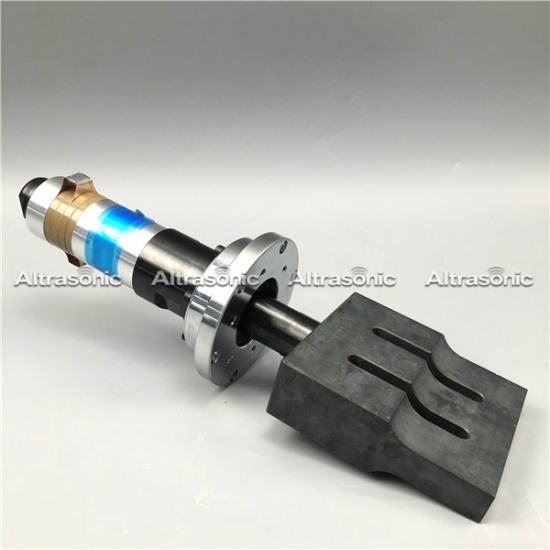

15kHz 2600Watt Ultrasonic Converter and Booster with Welding Horn 200*25mm

15kHz 2600Watt Ultrasonic Converter and Booster with Welding Horn 200*25mm

Description:

Ultrasonic assembly is primarily used for thermoplastic joining. Compared with other plastic bonding techniques, ultrasonic plastic joining has the advantages of excellent welding quality, high production efficiency and wide application. The applications of ultrasonic welding are extensive and are found in many industries including electronic and electrical, automotive and aerospace, civil engineering, medical, and packaging.

We can develop kinds of automatic ultrasonic welding production line to meet customers' requirements. Standard ultrasonic welding machine can be divided into table-type and cabinet-type. For cabinet-type, a delicate cabinet type work table in accordance with ergonomics is arranged on the basis of the table-type ultrasonic plastic welder to facilitate operation.

Specification:

Item No.: HS-W15

Frequency: 15kHz

Power: 2600Watt

Booster: Steel

Advantage:

1. Lightweight

Thanks to their plastic housing, the ultrasonic hand welding units are extremely light yet also robust

2. Ergonomic shape

The weight of the ultrasonic hand welding guns is perfectly balanced thanks to their design, making them feel even lighter to handle as a result

3. Service friendly

The converter can be changed over in no time

4. Convenient working

Operating the hand unit is simple, safe, comfortable and intuitive

5. Air cooling

Air cooling for the sonotrode and the converter is pre-integrated in the hand unit and should be used as required

Application:

Ultrasonic plastic welding is also utilized in the medical industry, primarily because it doesn’t introduce contaminants. Items such as anesthesia filters, blood filters, IV catheters, dialysis tubes and face masks can be made using ultrasonic plastic welding. Another important application in the medical field is the construction of such textile wear as hospital gowns, surgery garments, and transdermal patches, just to name a few. These items can be sewn and sealed using ultrasonic plastic welding to avoid and reduce the risk of infection.
