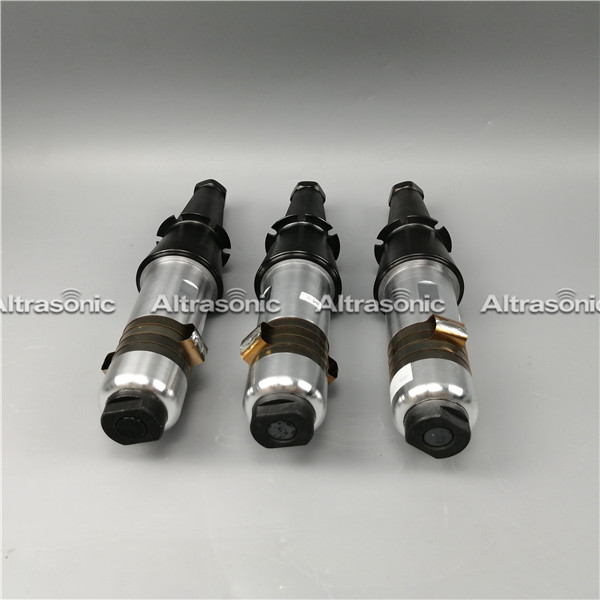

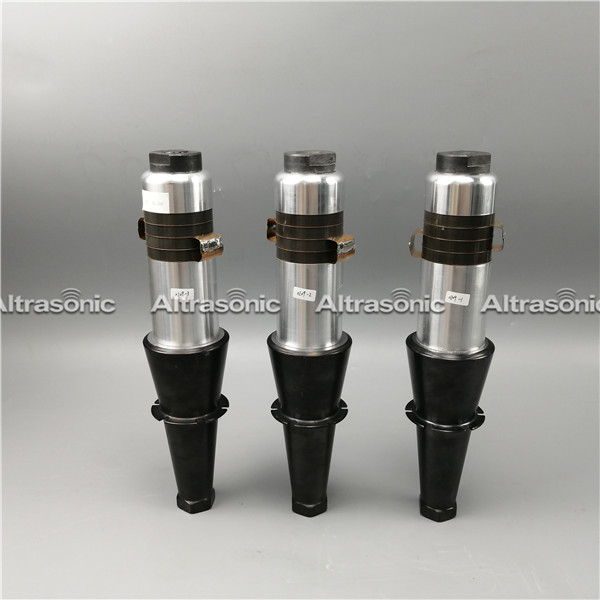

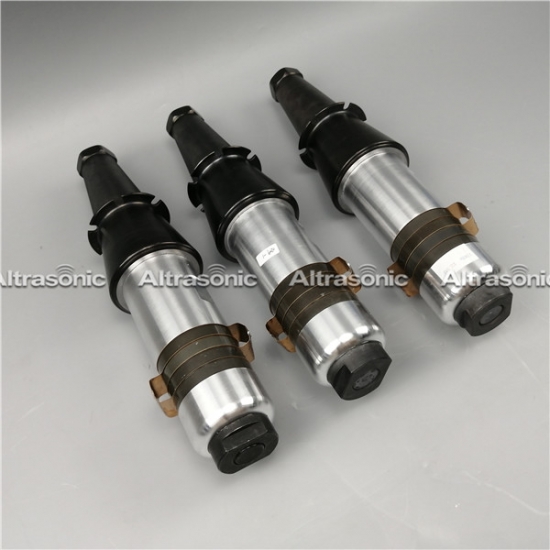

15kHz High Power Ultrasonic Welding Transducer Used in N95 Making Machine

15kHz High Power Ultrasonic Welding Transducer Used in N95 Making Machine

Description:

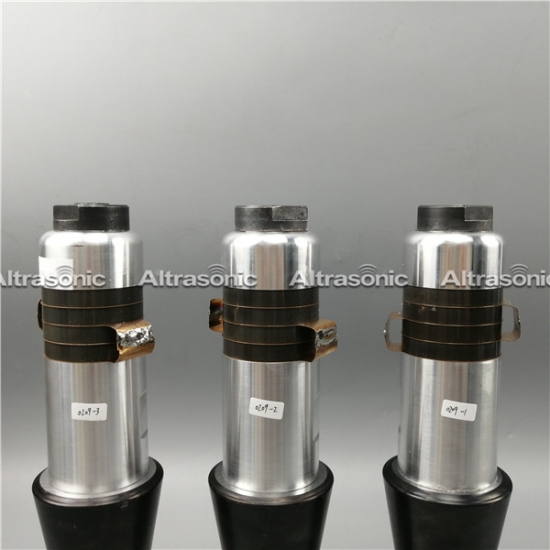

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. Altrasonic 15kHz high-power transducer is suitable for ultrasonic welding machines for producing medical masks. Altrasonic researched and added matching horns to make the ultrasonic welding system run more stable. Perfectly adapted to the requirements of welding multilayer non-woven masks. In the era of pursuing energy saving and environmental protection, the ultrasonic automatic mask welding machine gradually emits luster.

Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Specification:

Item No.: HS-6015-4Z

Frequency: 15kHz

Power: 2600Watt

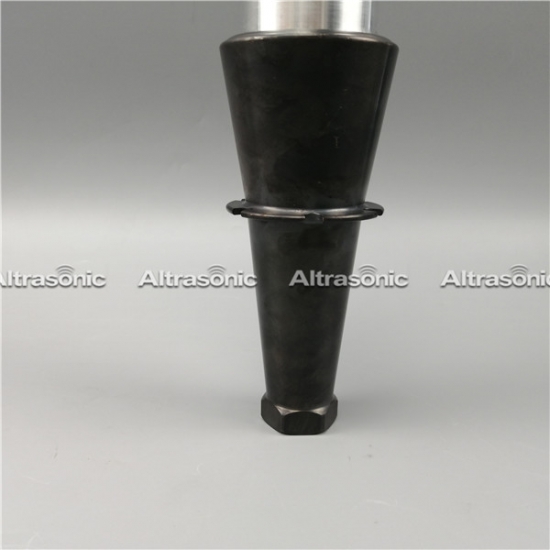

Booster: Steel

Diameter of Ceramic: 60mm

Quantity of Ceramic: 4pcs

Connect Screw: M16 X 1

Application:

Non-woven mask

Disposable medical mask

Surgical mask

N95

KN95

What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Workshop:

CE:

Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
