The core of the ultrasonic transducer is the piezoelectric ceramic sheet. As is true in many other applications for piezo-electric materials, an assembly of multiple ceramic elements offers considerable performance and production advantages in ultrasonic transducer, relative to a single ceramic element.
Item No.:
HS-BCJ20Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
7
Description:

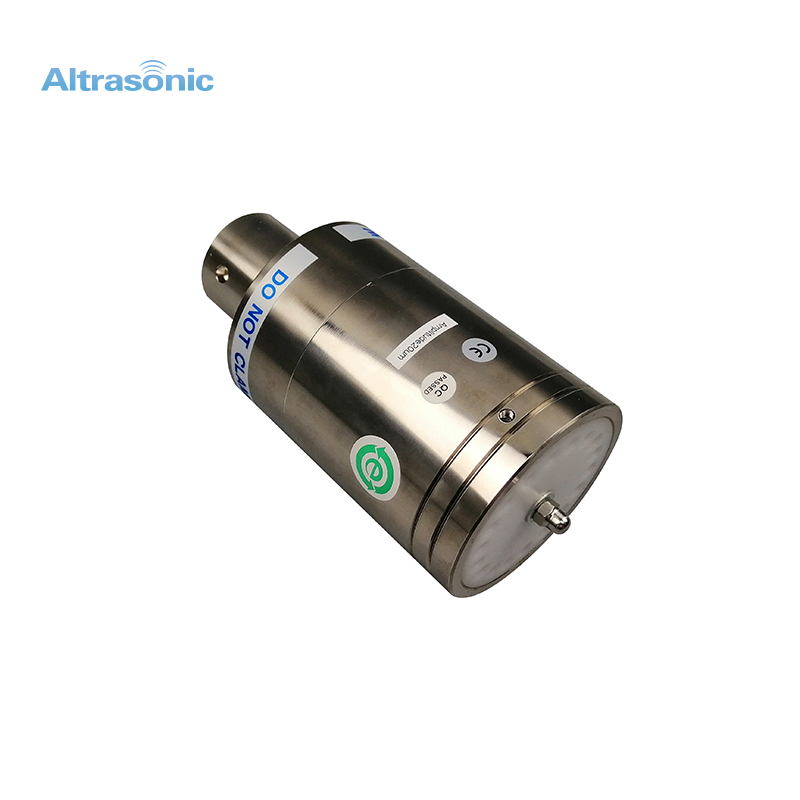

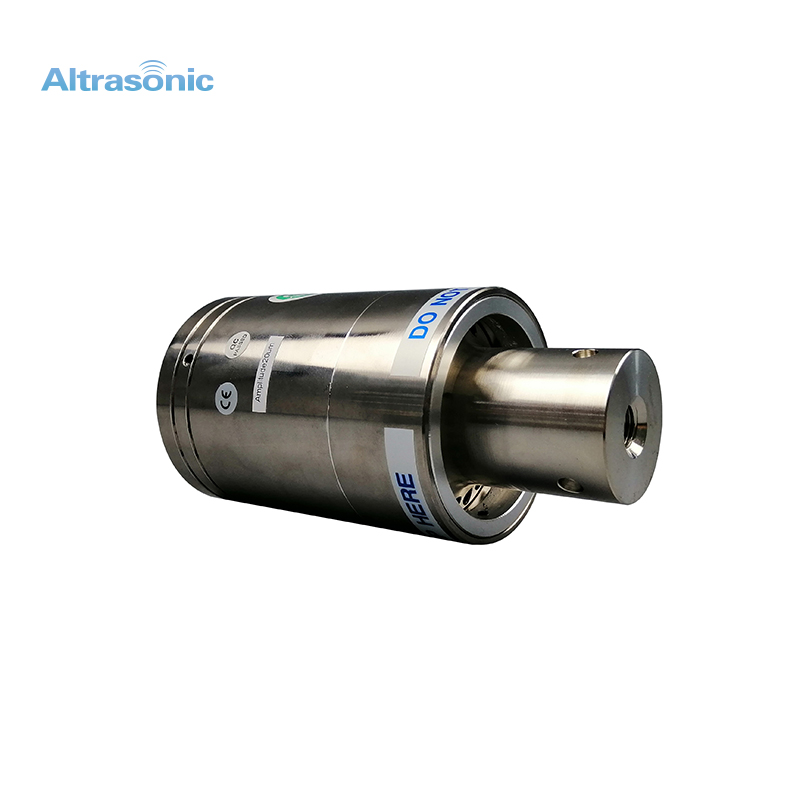

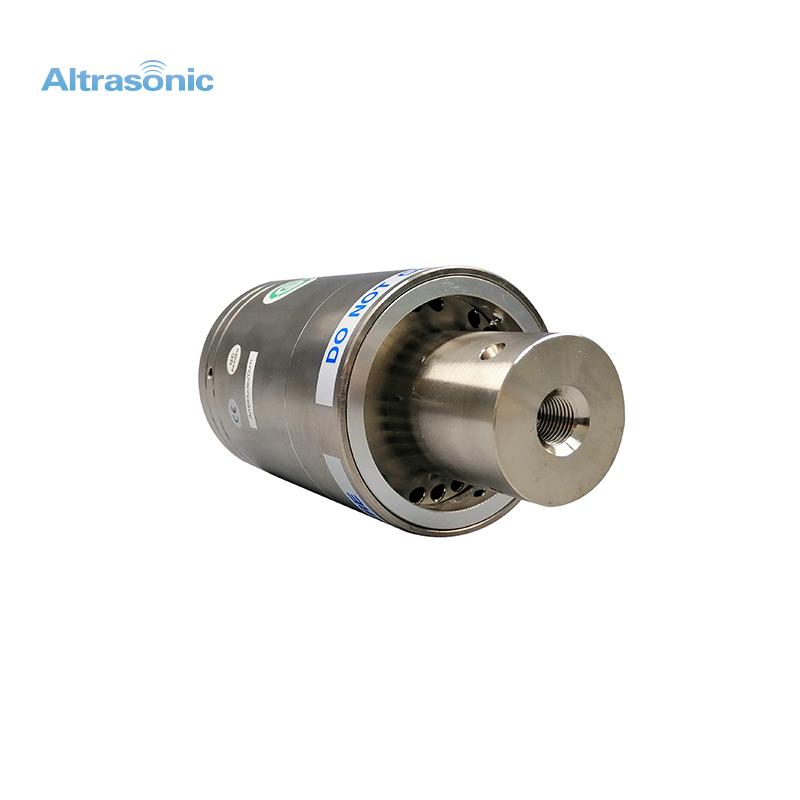

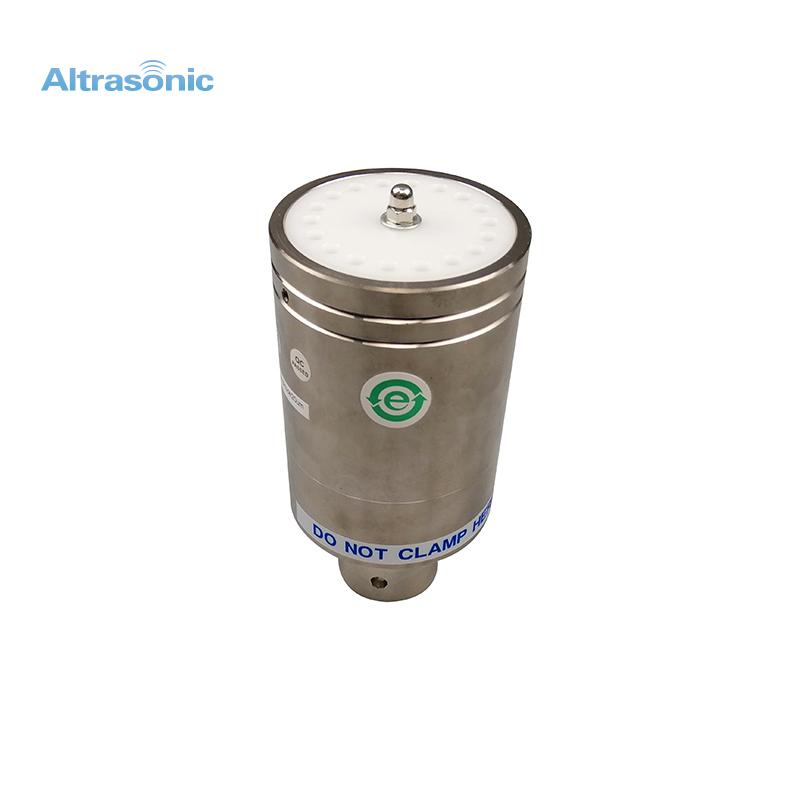

An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.
Specification:
Item No
HS-BCJ20
Frequency
20 kHz
Power
1100 - 4000 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
6 pcs
Capacitance
19 - 21 nF
Advantages:
1. Made of Titanium
2. When assembled over, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, therefore, put it on the shelf prior to test will identify nonconforming material.
3. Testing over and over again to ensure that each transducer performance are excellent.
4. Possess good heat resistance, great guaranty can be used in a wide range of temperature with long life and high reliability.
