Ultrasonic Food Slicing Cutter 305mm with Digital Generator for Dough Cutting in Bakery Products

  • Item No.:

    HS-C20
  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Color:

    Silver, Green, Red
  • Shipping port:

    Hangzhou or Ningbo
  • Product Details

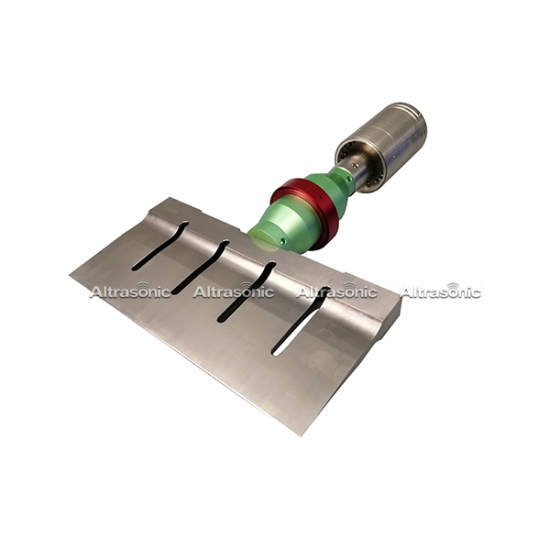

20K Ultrasonic Food Slider or Cutting Blade Fixed on Robot Arm or Lines




Description:


Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.


Specification:


Item No.: HS-C20

Frequency: 20 kHz

Power: 800W

Material of Blade: Food industry approved titanium

Length of Blade: 305mm

Input: AC110-240V, 50/60Hz

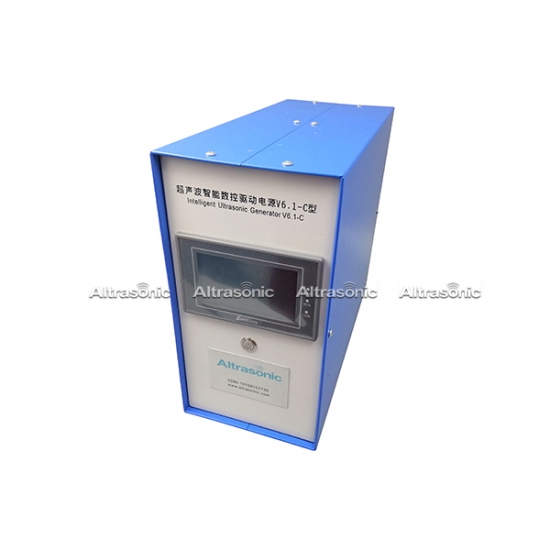

Generator: Digital; Auto-tuning

Machine Weight: 15 kg-18kg

Cable Length: 3M or customiz





Advantages:



• Non-stick, smooth and neat cut

• Wide range of cutting objects, frozen products, including cream products can adapt
• Cutting constant temperature, high temperature, low temperature can be cut
• Significant increase in processing speed
• No crumbs or broken edges

• Multi-layer products cut, can maintain the level of cross-color

  Food industry approved titanium blade, cutting is very hygienic;

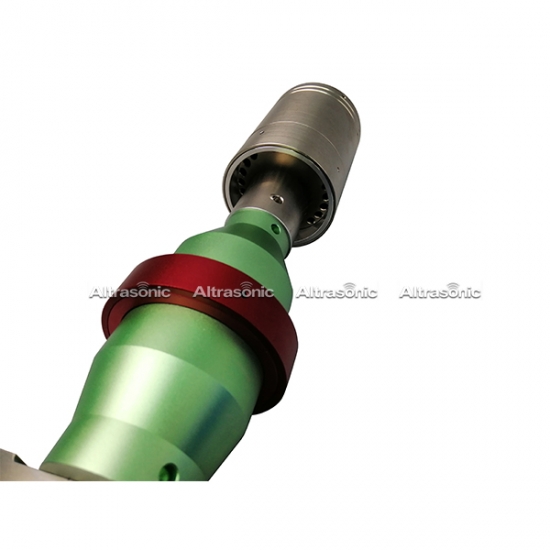

 Horn designs for long life and amplitude accuracy;
• Greatly reduced normal down time for clean up;
 Makes the cost of production flow minimization;
• Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.



Why choose Altrasonic



1. Cost-benefit system, we work out the best solution with reasonable price for our customer after testing. we also offer one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

2. The purchase process is very convenient and efficient, we deal with customer’s case within 24 hour, and it often take 3-4days to delivery goods from here to your company via international express. Our general lead time is around 7-20days.

3. Strict quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.

4.  We offer free test for customers and also have oversea service: we have sub company in Australia, and agent in India,Malaysia and Europe.

5. We are flexiable for customize individual program as we have a strong technical team to support.



Application:


Bakery and snack foods,

Candy and confectionery cheese/Fish/Prepared meat/Vegetable/Health Bars;

Chocolates, sandwich and wrap cutting;

Dry fruit;

Poultry;

Potted;

Processed meat;

Ground meat;
