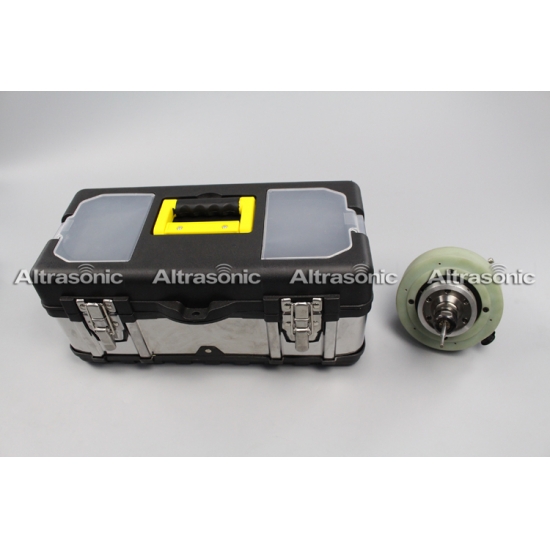

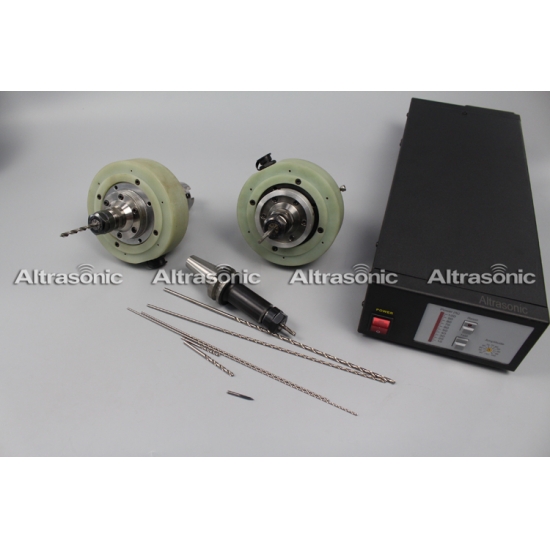

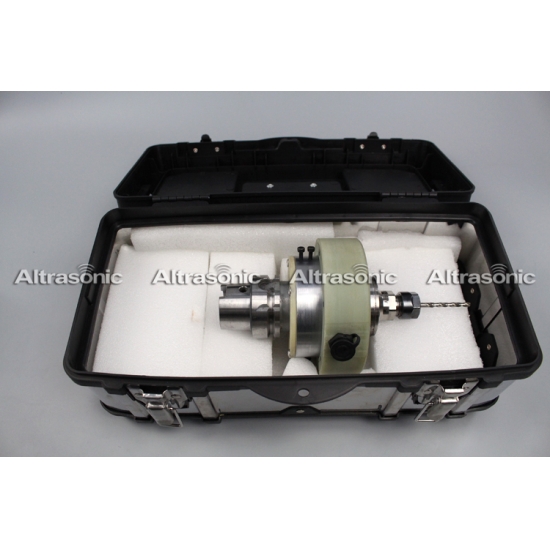

20khz 2000W Spindle Ultrasonic Maching Device with HSK63 Connector for Drilling

20khz 2000W Spindle Ultrasonic Maching Device with HSK63 Connector for Drilling

Specification:

Ultrasonic milling

With the development of high speed spindle technology and ultrasonic power supply technology, the ultrasonic milling process gathering ultrasonic high frequency vibration and spindle rotating in high speed is regarded as the pioneer of high precision and high efficient process technology, applying in elaborate processing for various kinds of materials especially fragile rigid material. The milling process by using rotate milling cutter is suit for processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.

Ultrasonic milling is proved as one kind of effective technology to improve the work ability of Titanium alloy, Aluminum alloy and stainless steel. The ultrasonic milling process has more advantages than traditional milling. Comparing the ultrasonic process effect among steel, Titanium alloy, Aluminum alloy and stainless steel, the most prominent surface quality improvement are Titanium alloy and Aluminum alloy, the most prominent cutting capability improvement is stainless steel, and the most prominent quality improvement in side work piece is steel.

Principle:

Ultrasonic machining process uses a power supply that converts conventional line voltage to 20KHz electrical energy.

This high-frequency electrical energy is provided to a piezoelectric converter that changes high frequency electrical energy into mechanical motion.

The ultrasonic motion from the converter is amplified and transmitted to the horn and cutting tool.

This causes the horn and attached cutting tool to vibrate perpendicularly to the tool face thousands of times per second with no side to side motion.

A recirculating pump forces E/Z Pump™ abrasive, suspended in a liquid medium, between the vibrating tool face and the workpiece. The abrasive particles strike the workpiece at 150,000 times their own weight.

These tiny abrasive particles chip off microscopic flakes and grind a counterpart of the tool face.

Applications

1. Various kinds of materials especially fragile rigid material.

2. Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.

3. Application area: machining industry, machine tool equipment manufacturing.

4. Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.

Technical Parameters:

Product shape: BT40 milling machine handle

Working frequency: 15-21KHz;

Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 1000W

Competitive Advantages:

· Virtually any hard material can be machined

· Little heat is produced

· Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.

· Good surface finish and higher structural integrity is obtained
