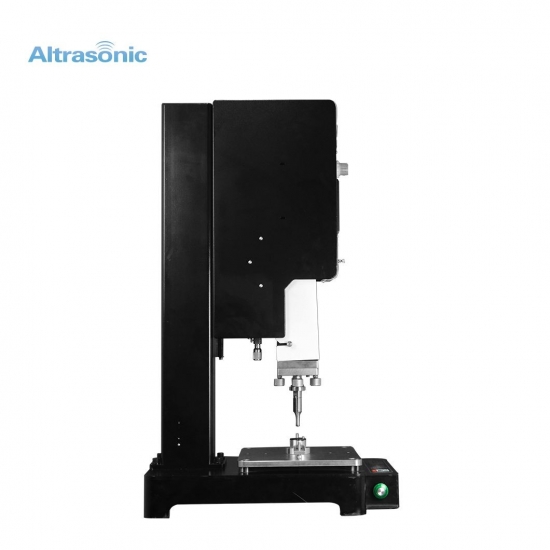

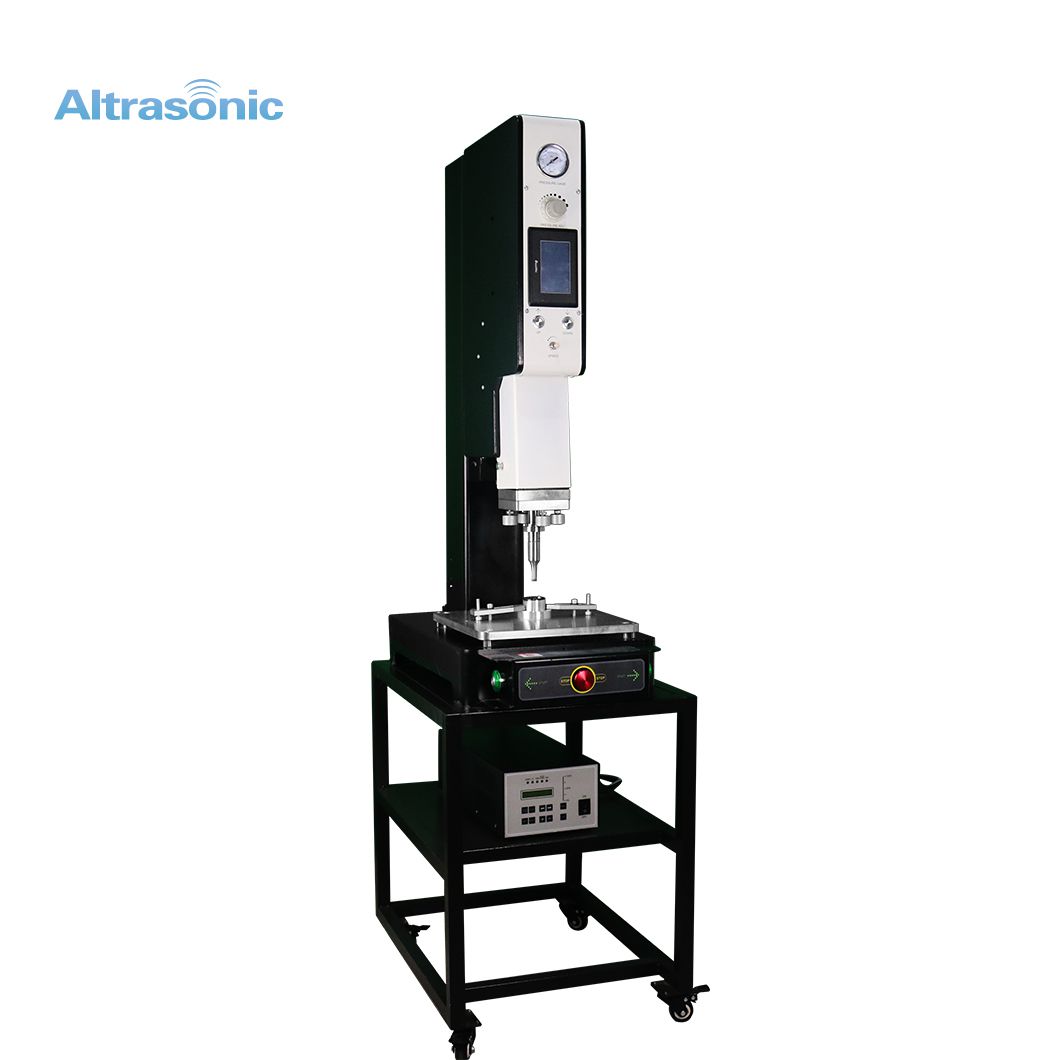

35kHz 1200W Ultrasonic Welding Machine for Plastic

FEATURES

• 4.3" Industrial computer
• Electric height adjustment
• Real-time frequency auto-tracking display
• Welding mode: time, energy
• Amplitude step function
• Automatic amplitude compensation
• Mold impedance analysis & protection
• Overload protections
• Quality management (time and energy inter-checking)
• Welding records (operating statistics)
• Powerful, high quality, high welding stability
• Can be matched to automated production lines

 Specification:

Working Principle:

Ultrasonic welding machine principle is generated by the generator 35kHz of high pressure, high-frequency signals, through the transducer system, the signal is converted into high-frequency mechanical vibration, added to the plastic products on the workpiece, through the surface of the workpiece and in the intermolecular friction and so that the transfer to the interface of the temperature rises when the temperature reaches the melting point of the workpiece itself, so that the interface of the workpiece quickly melted, and then fill the gap between the interface, and when the vibration stops, the workpiece cooled and shaped under a certain pressure, it will achieve the purpose of welding. When the vibration stops, the workpiece at the same time in a certain pressure cooling and shaping, will achieve the purpose of welding. The ultrasonic welding machine transmits ultrasonic energy to the weld zone through the upper weldment, due to the high acoustic resistance of the weld zone, i.e. the interface between the two welds, a localised high temperature is generated. And because of the poor thermal conductivity of plastic, a moment can not be distributed in a timely manner, gathered in the weld area, resulting in the contact surface of the two plastics quickly melted, plus a certain pressure, so that it fused into one. When the ultrasonic stop acting, so that the pressure continues, there is a little holding time, so that the solidification of the shape, so that the formation of a solid molecular chain, to achieve the purpose of welding, welding strength can be close to the strength of the raw material body.

Application:

Regular section: Steam iron, water dispenser plastic plate, TV set shell, transparent panel of the radio, shaker, portable fluorescent lamp cover, plastic frame of the juicer, vacuum cleaner parts, razor shell, TV set shell screws fixed seat, mosquito reduction lamp shell, washing machine dehydration tank, 3-inch floppy disk, USB connectors, calculator, electronic watch, cell phone shell, setter, switch and socket, pre-paid water meter meter, bluetooth earphone, injection molding parts vibration drop, toy pacifier, ball player card rating card box, photo albums, keychains, plastic lighters, toothpick cases, luggage, seat-sealed containers, hollow plate boxes, lipstick shells, cell phone chargers, power adapters, communication equipment nuts buried, consumables plastic parts, tape, toner cartridges, printer parts, fax machine parts, medical consumables, etc.

Automotive section: Welding of wheel arch cover, welding of headlamp lenses, wheelhouse or underfloor panelling, welding of supports, e.g. for parking sensors, headlamp washing system, side marker lamps or trailer couplings, welding of textile inserts, rear parcel shelves,,welding or riveting of instrument clusters, airbag covers or door panelling etc.

<<<
