Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.
Item No.:
HS-C40Payment:
T/T, West union, PaypalProduct origin:
ChinaColor:
WhiteShipping port:
Hangzhou or Shanghai

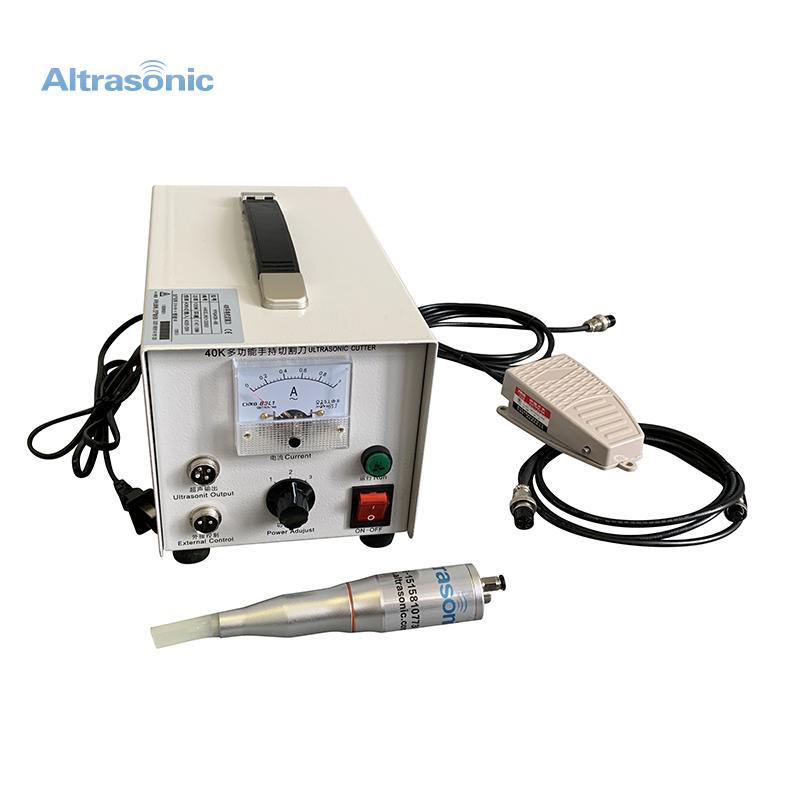

40kHz ultrasonic generator high power with low price for cutting machine plastic cutter
Specification:
| Model | HS-C40 |
| Frequency | 40KHZ |
| Output Power | 100W |
| Generator | Analog generator, 155 x 265 x 170mm |
| Handle | Φ32×170 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory |
Foot switch1pc；Cut blade 25pcs；1.5mm special hex wrench 1pc； Screw M3×4L 2pcs |
| Material of cutter | titanium alloy, stainless steel |
Description:
Ultrasonic plastic cutting machine is used for cutting rubber , synthetic , cloth , plastic , sheet metal , food etc..
.
Advantage:
– No fraying and selvage
– No burns on fabrics and emissions of toxic fumes
– No warm up waiting time
– Shorter production times
– Less energy consumption
– No need for thread in seams
– Coupling together two fabrics or one with a film
– Simultaneously punching and sealing
– Cutting and sealing synthetic cloth at the same time
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
Previous :
20khz Ultrasonic Rubber Cutter High Frequency Plastic Cut BladeNext :
PLC Control Handheld and Automotive 40kHz Ultrasonic Machine Plastic Cutter PVC Cutting MachineIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The applicable materials of ultrasonic wave sealing and cutting include: 100% of synthetic fiber, such as nylon, polyester, polypropylene, some polyethylene, modified acrylic resin, vinyl compounds, carbamate compounds, thin films, coated paper, etc.
Mainly used in many kinds of plastic materials，such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic handheld cutting machine suitable for materials with thickness 7mm.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
