Ultrasonic Machining is Changing the Manufacturing Industries with its Superlative Performance
Item No.:
HS-M20Payment:
T/T, PayPal, WWestern UnionPrice:
$450/unitProduct origin:
ChinaColor:
GreenShipping port:
Shanghai or Ningbo

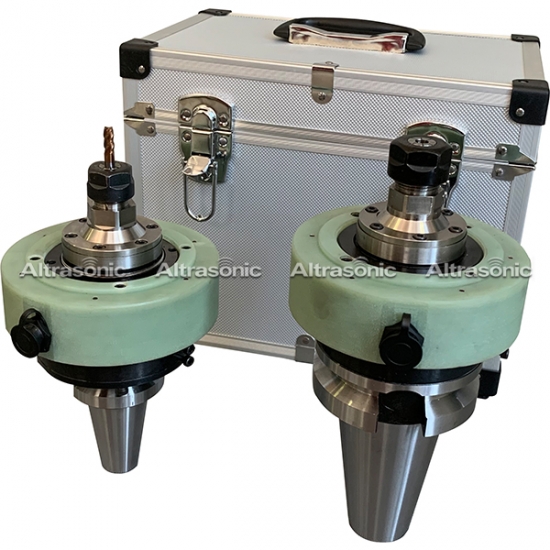

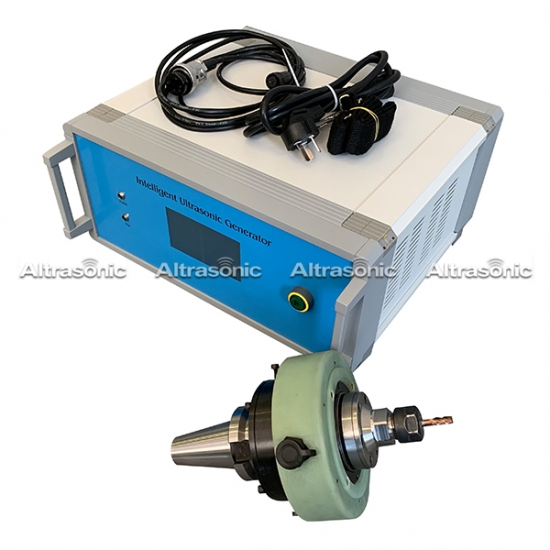

Brittle Hard Materials Processing for Ultrasonic End Milling Equipment
Technical Parameters:
Item No.: HS-M20
Frequency: 20kHz
Power: 500Watt
Speed: 20,000RPM
Amplitude: 10um or more
Diameter of Horn:
Milling: Φ1-Ф13mm
Drilling:Ф2-Ф6mm
Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT
(Special spindles are made per request.)
Description:
The rotary ultrasonic machining technology from Altrasonic enables the economical machining of complex workpiece geometries in demanding high-tech materials. The kinematic overlapping of the tool rotation with an additional oscillation effects a reduction of the process forces by up to 40 % in comparison to conventional machining.
Advantage:
1. Technology integration via R8 actuator system;
2. Ultrasonic machining superimpositioning of the tool rotation with amplitudes up to > 10 µm;
3. Automatic frequency detection -adation, amplitude regulation and automatic feed adjustment;
4. Up to 50% reduced process forces due to Ultrasonic machining allow: higher feeds, better surface finishes up to Ra < 0.2 µm, longer tool life;
Application:
Medical industry: Artificial crown machining
Automotive industry: Valve deburring
Die & mold industry: Surface finishing
Aerospace industry: Surface finishing
Precise ceramic industry: Roughing and finishing
Glass industry: Drilling, polishing, chamfering
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
FAQ:
Q:Can your ultrasonic machine assemble to my CNC machine?
A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.
Q:What is the RMP(Round Per Minute) pf your equipment?
A:Normally the max speed of designed equipment is below 3000RMP, if you need faster for better performance, we will do the some adjustment to match the max speed 30000 RPM.
Q:What is the diameter of your drilling tool?
A:The diameter range of our drilling tool is 1mm to 13mm(according to custom’s application)
Previous :
Rotary Ultrasonic Spindle for BT40 HSK63 used in Milling and DrillingNext :
Rotary Ultrasonic Vibration Assisted Machining With CAT40 Spindle TypeIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion. The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.
During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion. The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.
During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion. The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.
Customized Knife Handle Ultrasonic Vibration Spindle With Power Control
Ultrasonic machining (UM or USM) is a non-thermal, non-chemical and non-electrical process that keeps the chemical composition, material microstructure and physical properties of the workpiece constant. Sometimes referred to as ultrasonic impact grinding (UIG) or vibratory cutting, this process can be used to create a variety of complex features in advanced materials.
Customized Knife Handle Ultrasonic Vibration Spindle With Power Control
During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion. The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.
Ultrasonic milling has proven to be an effective technique for improving titanium, aluminum and stainless steel workability. Under the action of ultrasonic milling, it has more advantage than the traditional milling. In contrast to the effect of ultrasonic machining aluminum, steel, stainless steel, titanium four metallic materials.Improved surface quality of the most prominent is the titanium and aluminum, can improve the cutting ability of the most prominent is the stainless steel, the quality of the workpiece side is the most significant improvement in steel.
