The transducer with double horn can generator larger amplitude than single item. So it is applied to difficult welding environment requirements, including big auto parts and other big plastic samples.
Item No.:
HS-6015-4Z DoublePayment:
TT in advanceMarket price:
$980Price:
$890/unitProduct origin:
ChinaShipping port:

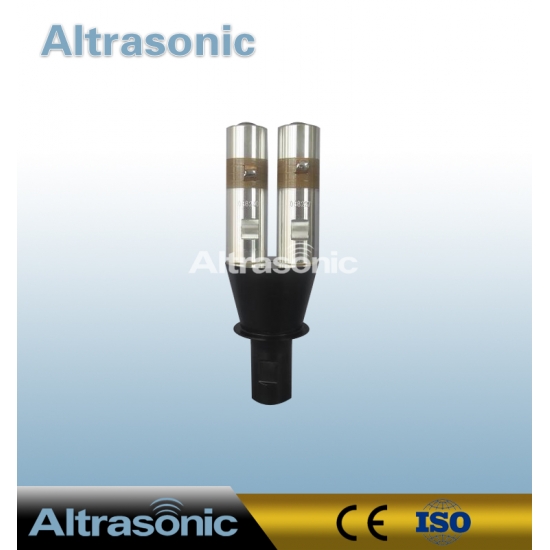

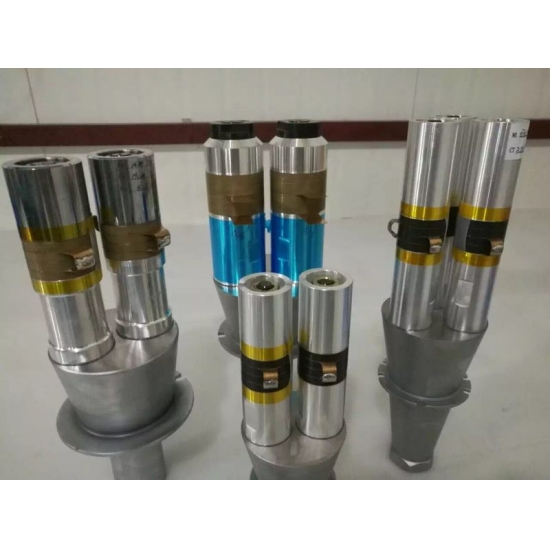

ShanghaiDouble Horn 15Khz Ultrasonic Welding Transducer
Specifications:
Model |
HS-6015-4Z double |
Frequency |
15khz |
Output power |
4200watt |
Joint bolt |
M20 1.5 |
Ceramic disc Diameter |
60 mm |
Quantity of Ceramic discs |
8 pcs |
Capacitance |
8-10 nf ,10-12nf , 12.5-13.5nf |
Amplitude |
30-40 um |
Application |
Welding |
Quick Detail:
Stabilized power and high reliability widely application
Application:
Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.
We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
Description:
6015-4Z Double 42000W High Power Ultrasonic Transducer is a device which converts one form of energy into another form. Take an example of human eye. It is somehow work like transducer. Suppose if we see a table then our eye receive an image signal and convert it in to electrical signal which travel through neurons and passed to our brain our brain sensed this electrical signal and work accordingly. Note that we can’t able to see anything without our eyes because our brain can’t just directly sense the image signal. Likewise in real world we have to convert one form of energy in to other form. So Transducer is a energy conversion device. It can convert electrical energy in to mechanical energy or magnetic energy and vice a versa. Some example Transducer are: Self excited DC motor. LDR converts brightness (of light) to resistance. Thermistor converts temperature to resistance. Lamp converts electricity to light.
Specifications:
The columnar type NTK TYPE (stabilized power and high reliablity widely application) |
||||||||||
Item No. |
Connect screw (Size) |
Ceramic diameter (mm) |
Quantity of Ceramic (pc) |
Resonance frequency (khz) |
Resistance (Ω) |
Capacitance |
Input power (W) |
Max. Amplitude (um) |
||
|
|
|
|
|
|
Yellow |
Grey |
Black |
|
|
7015-4Z |
M20 X 1.5 |
70 |
4 |
15 |
15 |
12500-14000 |
/ |
17000-19000 |
2600 |
10 |
6015-4Z |
M20 X 1.5 or M16 X 1 |
60 |
4 |
15 |
15 |
8000-10000 |
10000-12000 |
12500-13500 |
2200 |
10 |
6015-6Z |
M20 X 1.5 |
60 |
6 |
15 |
15 |
14000-16000 |
/ |
19500-21000 |
2600 |
10 |
5015-4Z |
M18 X 1.5 |
50 |
4 |
15 |
15 |
12000-13000 |
13000-14300 |
15000-17000 |
1500 |
8 |
4015-4Z |
M16 X 1 |
40 |
4 |
15 |
15 |
10000-11000 |
10500-11500 |
|
700 |
8 |
5520-4Z |
M18 X 1 |
55 |
4 |
20 |
15 |
10000-11000 |
10500-11500 |
14300-20000 |
2000 |
8 |
5020-6Z |
M18 X 1.5 |
50 |
6 |
20 |
15 |
18500-20000 |
/ |
22500-25000 |
2000 |
8 |
5020-4Z |
M18 X 1.5 |
50 |
4 |
20 |
15 |
11000-13000 |
13000-15000 |
15000-17000 |
1500 |
8 |
5020-2Z |
M18 X 1.5 |
50 |
2 |
20 |
20 |
6000-6500 |
6500-7000 |
8000-9000 |
800 |
6 |
4020-4Z |
1/2-20UNF |
40 |
4 |
20 |
15 |
9000-10000 |
9500-11000 |
/ |
900 |
6 |
4020-2Z |
1/2-20UNF |
40 |
2 |
20 |
25 |
/ |
4800-5500 |
/ |
500 |
5 |
5025-2Z |
M12 X 1 |
50 |
2 |
25 |
25 |
5000-5600 |
/ |
7000-8000 |
500 |
4 |
3828-2Z |
1/2-20UNF |
38 |
2 |
28 |
30 |
3800-4300 |
/ |
/ |
500 |
3 |
3828-4Z |
1/2-20UNF |
38 |
4 |
28 |
30 |
7600-8500 |
/ |
10500-12000 |
800 |
4 |
3028-2Z |
3/8-24UNF |
30 |
2 |
28 |
30 |
2700-3100 |
3400-3800 |
/ |
400 |
3 |
2528-4Z |
M8 X 1 |
25 |
4 |
28 |
30 |
3900-4300 |
/ |
/ |
400 |
4 |
2528-2Z |
M8 X 1 or 3/8-24UNF |
25 |
2 |
28 |
35 |
1950-2200 |
2200-2500 |
/ |
300 |
3 |
3030-4Z |
M10 |
30 |
4 |
30 |
30 |
/ |
6200-6900 |
/ |
700 |
4 |
3035-2Z |
3/8-24UNF |
30 |
2 |
35 |
40 |
2700-3100 |
/ |
/ |
500 |
2 |
3035-4Z |
M10 X 1 |
30 |
4 |
35 |
30 |
5000-6200 |
/ |
/ |
800 |
3 |
2535-2Z |
M8 X 1 |
25 |
2 |
35 |
40 |
1900-2200 |
/ |
/ |
400 |
2 |
2540-2Z |
3/8-24UNF |
25 |
2 |
40 |
40 |
/ |
2000-2300 |
/ |
500 |
2 |
3040-4Z |
M10 |
30 |
4 |
40 |
30 |
5500-6200 |
/ |
/ |
1000 |
2 |
3050-4Z |
M8 |
30 |
4 |
50 |
30 |
5500-6200 |
/ |
/ |
600 |
2 |
1560-2Z |
M6 X 0.75 |
15 |
2 |
60 |
60 |
/ |
/ |
700-800 |
100 |
1 |
1070-2Z |
M4 |
10 |
2 |
70 |
200 |
/ |
/ |
350-400 |
100 |
1 |
PS:we can also customize depend on your requirements.
Competitive Advantage:
1. Higher amplitude, Larger output power.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
