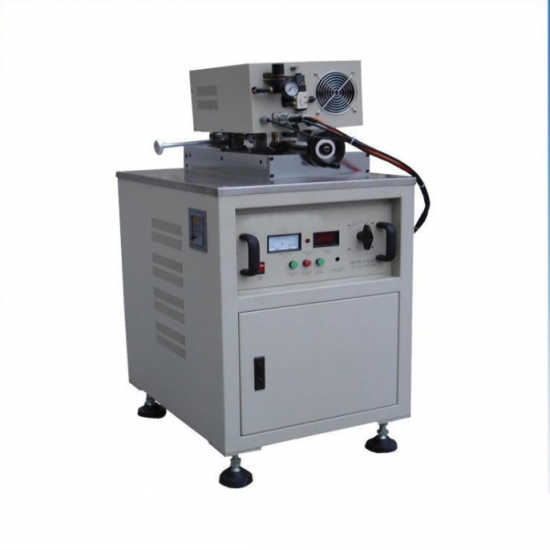

Easy to Operate 20KHZ Ultrasonic Aluminum-plastic Pipe Welding Machine for Copper Tube and Aluminum Foil Welding

Easy to Operate 20KHZ Ultrasonic Aluminum-plastic Pipe Welding Machine for Copper Tube and Aluminum Foil Welding

Specification:

1. Frequency: 20±1kHz

2. Maximum output power: 2000Watt

3. Welding speed: 4-10m/min (according to the thickness of the material)

4. Aluminum welding thickness: 0.2-0.5mm (according to the material)

5. Welding tool head diameter: 51mm in diameter

6. Operation mode: automatic, manual test

7. Working pressure: 0.2-0.6Mpa

8. Power supply: AC220V±5%, 50Hz±1%

9. Dimensions: Generator: 450×600×160mm3 Support: 400×330×220 mm3

10. Working environment temperature: 0-50℃ 11. Motor: three-phase AC 220V conversion motor (51KGV20)

Principle:

By using the principle of ultrasonic high-frequency vibration, the ultrasonic metal welding machine converts ultrasonic vibration energy into friction energy, thereby transferring the metal surface. Under conditions where heat is generated by friction and pressure is applied to the metal, the metal sheet will melt.

Application:

1. Ultrasonic aluminum-plastic pipe welding can be used for aluminum-plastic composite pipe production line;

2. Solar water heater (welding the heat exchange tube to the board);

3. Electric heating device (aluminum and Cooper heating tube welding);

4. Corrugated aluminum sheet processing;

5. Solar collector plate (welding copper tube and aluminum foil; copper tube and copper foil; welding multiple copper tubes throughout the board).

Advantages:

1. Simple structure and easy installation;

2. Flexible, can be used alone or in other systems;

3. Reliable system to ensure production yield;

4. Unique rotating structure design, no need to replace spare parts, saving cost;

5. The welding tip is made of special steel, which can withstand abrasion through strict production process.

Ultrasonic machining effect:
