Ultrasonic machining is a kind of new method of process technology, is the
ultrasonic vibration by adding high frequency micro-amplitude in general
milling process, to change the machinable property of material. Ultrasonic
milling device is constituted by generator, oscillator and horn.
Item No.:
HS-M20Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Green SilverShipping port:
Shanghai or NingboLead Time:
40

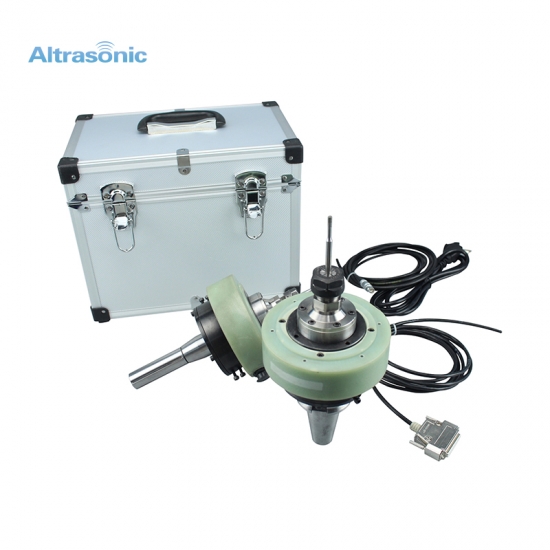

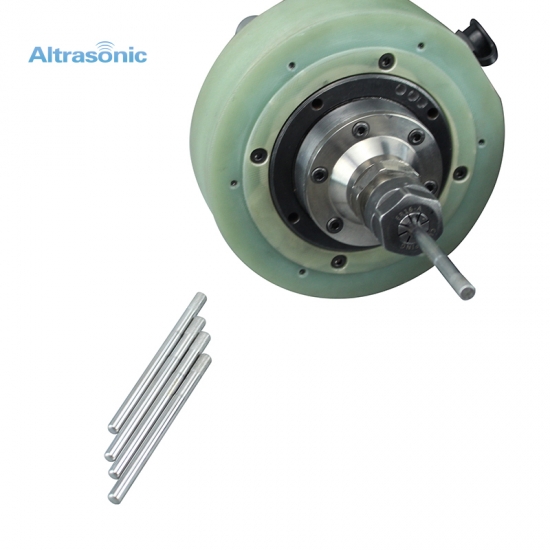

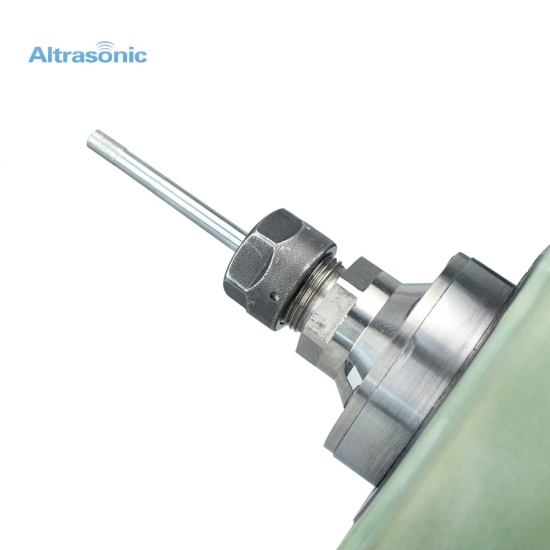

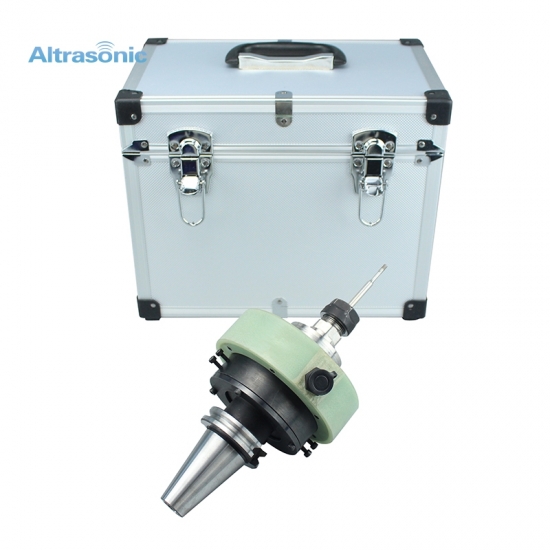

OEM Available 20K 500watt Ultrasonic Assisted Machining Machine Tool Holder BT30/40/50 HSK63A CT40 Available For Hard Metal Milling/Drilling
Specification:
Item No.: HS-M20
Frequency: 20kHz
Power: 500Watt
Speed: 20,000RPM
Amplitude: 10um or more

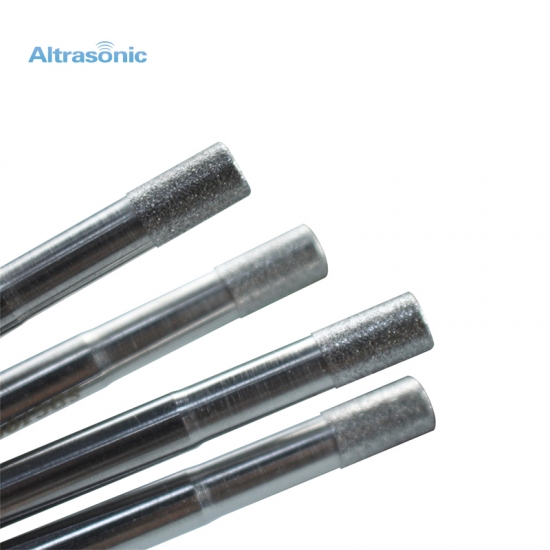

Diameter of Horn:
Milling: Φ1-Ф13mm
Drilling:Ф2-Ф6mm
Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT
(Special spindles are made per request.)
Principle:
Ultrasonic drilling is an unconventional loose abrasive processing process. Ultrasound is a sound wave with a frequency higher than 20,000 Hz.
Ultrasonic can be generated using mechanical, electromagnetic and thermal energy sources. They can be produced from gases (including air), liquids and solids.
During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.
The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.
The smaller the grit size, the smaller the momentum received from the tool. As the tool continues to move downward, the force acting on the larger coarse particles increases rapidly, so some coarse particles may break. Eventually, at the end of its stroke, the sand with a size greater than the minimum gap will penetrate the tool and the work surface to varying degrees.
Application:
Medical industry: Artificial crown machining
Automotive industry: Valve deburring
Die & mold industry: Surface finishing
Aerospace industry: Surface finishing
Precise ceramic industry: Roughing and finishing
Glass industry: Drilling, polishing, chamfering
Advantages:
1.Technology integration via R8 actuator system;
2.ULTRASONIC superimpositioning of the tool rotation with amplitudes up to > 10 µm;
3.Automatic frequency detection -adation, amplitude regulation and automatic feed adjustment;
4.Up to 50% reduced process forces due to ULTRASONIC allow: higher feeds, better surface finishes up to Ra < 0.2 µm, longer tool life.
Ultrasonic machining effect:
No Ultrasonic
With Ultrasonic
