The ultrasonic cutter designed with food grade cutting blade, ensures safety and efficiency.
Item No.:
HS-C28Payment:
T/T, West union, PaypalProduct origin:
ChinaColor:
WhiteShipping port:
Hangzhou or Shanghai

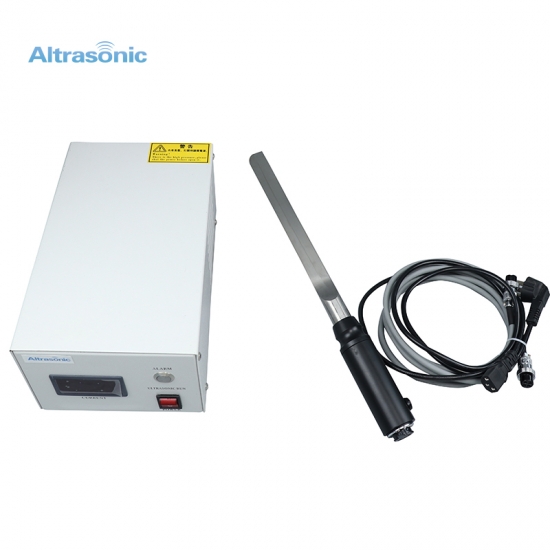

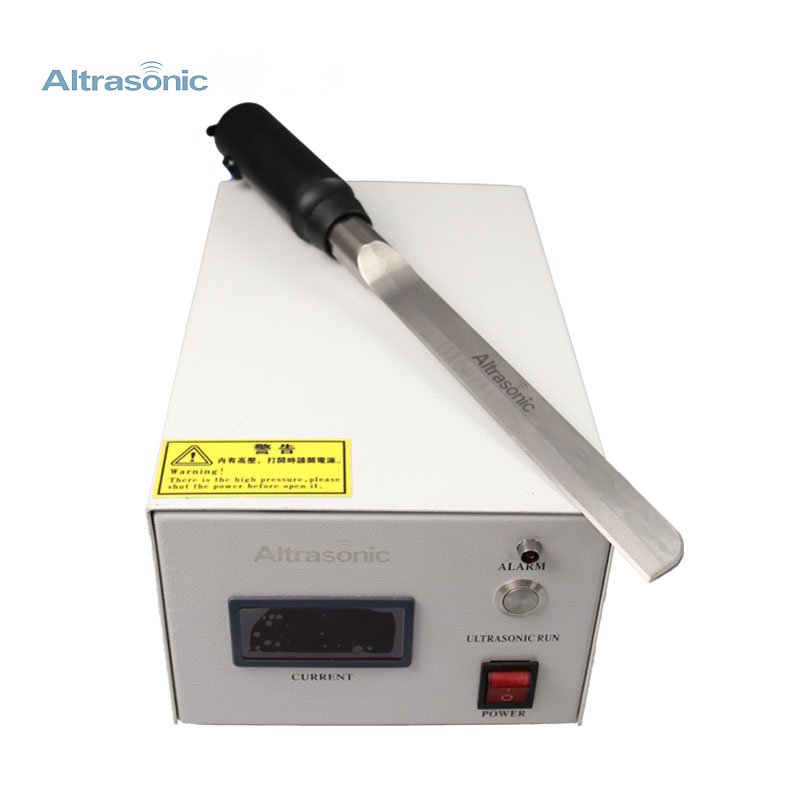

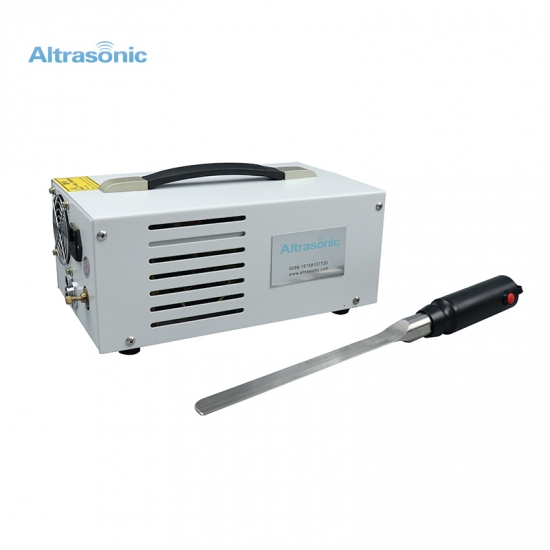

portable 28kHz ultrasonic food cutting machine for bread cheese cake Sticky food cutting
Specification:
| Item No | HS-C28 |
| Frequency | 28kHz |
| Power | 500watt |
| Generator | Analog |
| Cutting blade length | 220 mm |

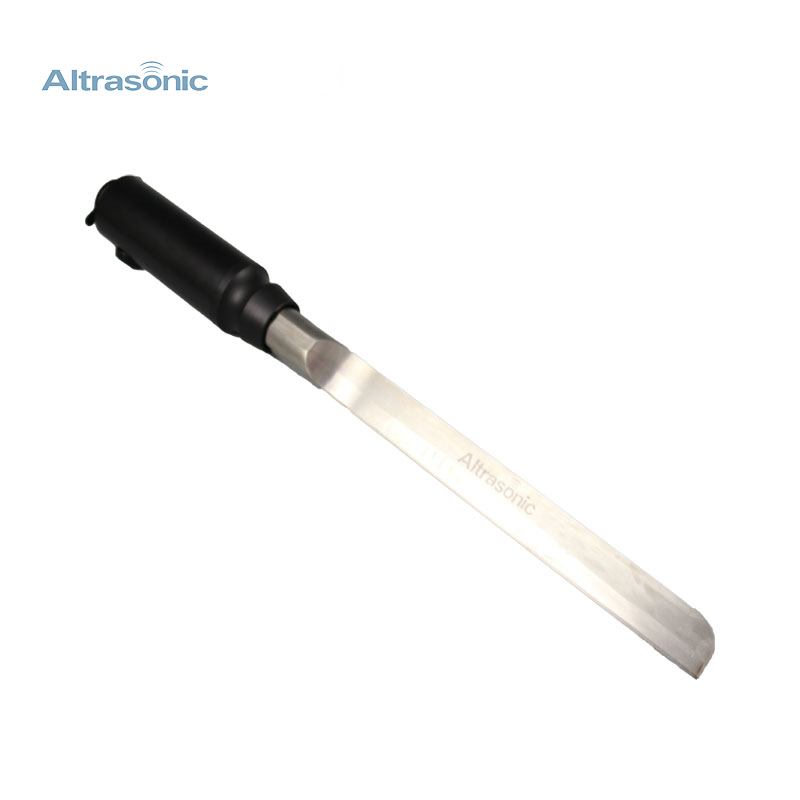

| Material of cutting blade | Titanium Alloy |
| Accessories | Foot switch, additional blade |
| Application | food grade |
| Net weight | 12 KG |
Description:
Ultrasonic food cutting knife is a kind of equipment that uses ultrasonic energy for cutting and processing. Its biggest feature is that it does not use cutting edges. In other words, the cutting edge in the traditional sense is not used. Traditional cutting uses a knife with a sharp edge to press against the material to be cut. This pressure is concentrated at the cutting edge, and the pressure is very large, exceeding the shear strength of the material to be cut, and the molecular bonds of the material are pulled apart and cut. Since the material is pulled apart by strong pressure and rigidity, the cutting blade should be very sharp, and the material itself has to bear relatively large pressure. For soft and elastic materials, the cutting efficiency is not high.
Advantage:
1. Ergonomic design
2. Can be controlled manually, or by foot switch
3. Suitable for cutting most meat, poultry, vegetable and fruit materials
4. The blade is not sharp, safe and durable
Previous :
20kHz 1000Watt ultrasonic food cutter install on automated machineryNext :
Ultrasonic Cheese Cutting Equipment with 305mm Titanium BladeIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
Ultrasonic food slicing equipment USES ultrasonic energy to generate 2,000 high-frequency vibrations per second, creating a nearly frictionless surface between the blade and the food, so there will be no viscosity and extrusion problems.Because friction is greatly reduced, the blade has almost no wear.
Ultrasonic food cutting equipment consists of ultrasonic transducer, outer casing, horn, titanium alloy knife and CNC drive power. Ultrasonic food cutting machines are an innovation in food processing. The ultrasonic food cutting machine vibrates at a high frequency of 40 kHz, which reduces the frictional resistance on the cutting surface.
Ultrasonic food cutting uses high-frequency vibratory knives. Applying ultrasonic vibration to a cutting tool creates a nearly frictionless cutting surface and can slice a multitude of food products cleanly without smearing.
The ultrasonic cutter designed with food grade cutting blade, ensures safety and efficiency.
The cutting blade length 220mm and width 24mm.
20khz ultrasonic food cutting machine is used on automatic machinery, welcome to consult for more details.
Ultrasonic food cutting machine is specially disgned for cutting food like cake, meat, vegetables, etc... This is a portable cutter, can easily carry and operate.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
