By using the principle of ultrasonic high-frequency
vibration, the ultrasonic metal welding machine converts
ultrasonic vibration energy into friction energy, thereby
transferring the metal surface. Under conditions where
heat is generated by friction and pressure is applied to the
metal, the metal sheet will melt.
Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
SilverShipping port:
Shanghai or NingboLead Time:
40

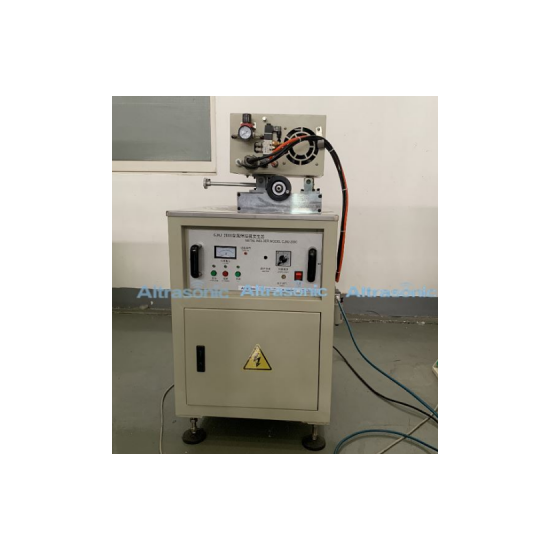

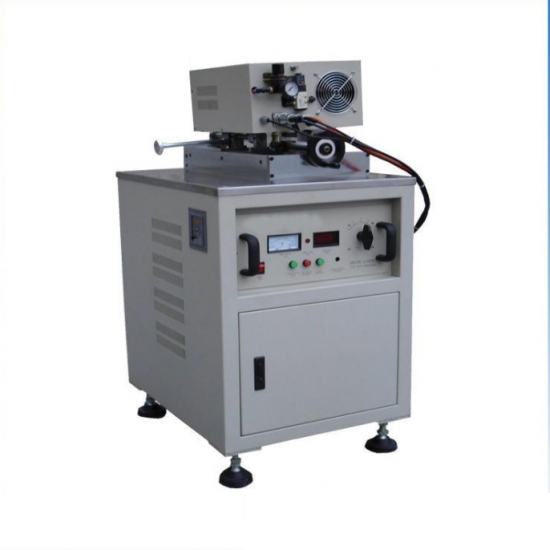

Simple structure easy installation Ultrasonic Aluminum-plastic Pipe Welding Machine
Specification:
1. Frequency: 20±1kHz
2. Maximum output power: 2000Watt
3. Welding speed: 4-10m/min (according to the thickness of the material)
4. Aluminum welding thickness: 0.2-0.5mm (according to the material)
5. Welding tool head diameter: 51mm in diameter
6. Operation mode: automatic, manual test
7. Working pressure: 0.2-0.6Mpa
8. Power supply: AC220V±5%, 50Hz±1%
9. Dimensions: Generator: 450×600×160mm3 Support: 400×330×220 mm3
10. Working environment temperature: 0-50℃ 11. Motor: three-phase AC 220V conversion motor (51KGV20)
Application:
1. Ultrasonic aluminum-plastic pipe welding can be used for aluminum-plastic composite pipe production line;
2. Solar water heater (welding the heat exchange tube to the board);
3. Electric heating device (aluminum and Cooper heating tube welding);
4. Corrugated aluminum sheet processing;
5. Solar collector plate (welding copper tube and aluminum foil; copper tube and copper foil; welding multiple copper tubes throughout the board).
Ultrasonic machining effect:
Previous :
Ultrasonic Aluminum Plastic Pipe Welding Machine with special steelNext :
Altrasonic 20KHZ 2000Watt Ultrasonic Aluminum-plastic Pipe Welding Machine Welding Equipment for Cooper Heating Tube WeldingIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
