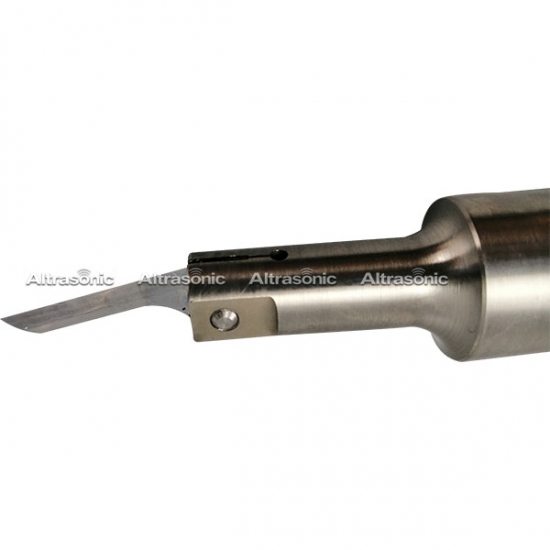

This section of the cutting knife with a 1mm thick alloy knife head, sharp head so that the cutting contact surface becomes smaller, reducing the heat of the head, sharp blade with ultrasonic cutting effect is more ideal. 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.
Item No.:
HS-C30Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Blue and BlackShipping port:
Ningbo or Shanghai

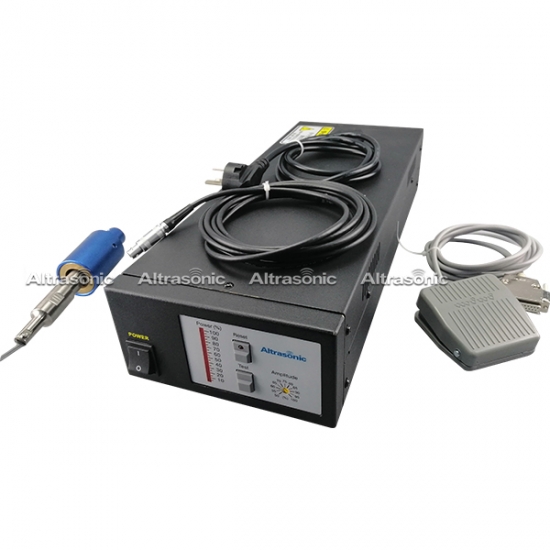

30khz Ultrasonic Cutter with Titanium Alloy Blades for ABS/Cell Phone Case Trimming
Specification:
| Item No. | HS-C30 |
| Frequency | 30kHz |
| Output Power | 500W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | Stainless steel |
Description:
Ultrasonic cutting knife maximum output power of 500W, for cutting difficult to cut the material, you can use 1mm thick wear-resistant carbide blade, and the user can replace the blade, increase the life of the cutting tool less cost. Ultrasonic cutting is the use of ultrasonic energy, will be cutting the material of local heating melting, to achieve the purpose of cutting materials, without sharp edge.
This section of the cutting knife with a 1mm thick alloy knife head, sharp head so that the cutting contact surface becomes smaller, reducing the heat of the head, sharp blade with ultrasonic cutting effect is more ideal. 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.
Advantage:
1. Cutting precision is high, rubber is not deformed;
2. Cutting surface finish is good, good bonding performance;
3. Easy to use in automated production;
4. Fast, high efficiency, no pollution;
Previous :
Free Replacement Blade 25PC or 5PC for 40kHz Ultrasonic Cutting MachineNext :
30khz 500W Ultrasonic Customized Cutter with Air Inlet and Outlet for Manual OpeartionIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The applicable materials of ultrasonic wave sealing and cutting include: 100% of synthetic fiber, such as nylon, polyester, polypropylene, some polyethylene, modified acrylic resin, vinyl compounds, carbamate compounds, thin films, coated paper, etc.
Mainly used in many kinds of plastic materials，such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic handheld cutting machine suitable for materials with thickness 7mm.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
