Ultrasonic vibration cutting is a kind of pulse cutting from a microscopic point of view.
Item No.:
HS-M20-WPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and GreenShipping port:
Shanghai or NingboLead Time:
45

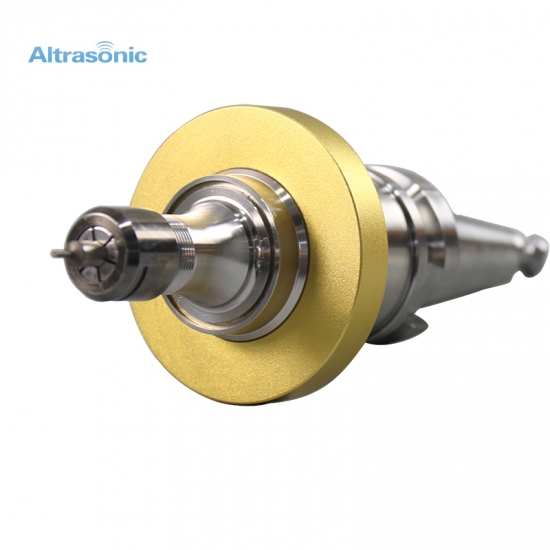

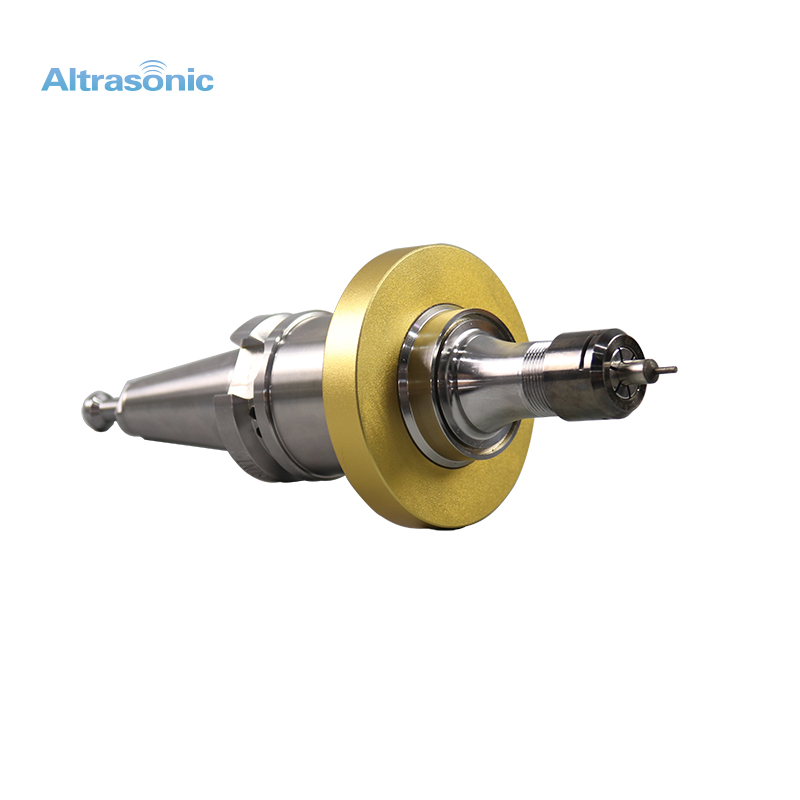

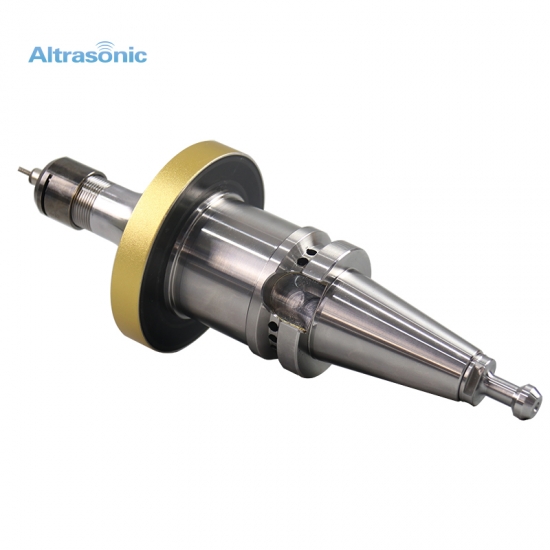

Ultrasonic non-contact auxiliary processing machine Hard and brittle material processing
Specification:
Item No
HS-M20
Frequency
20 kHz
Power
500 watt
Spindle taper
BT30
Rotation speed
Maximum 24,000 r/min
Amplitude
1~10 um
Tool interface model
ER-16
Weight
30 KG

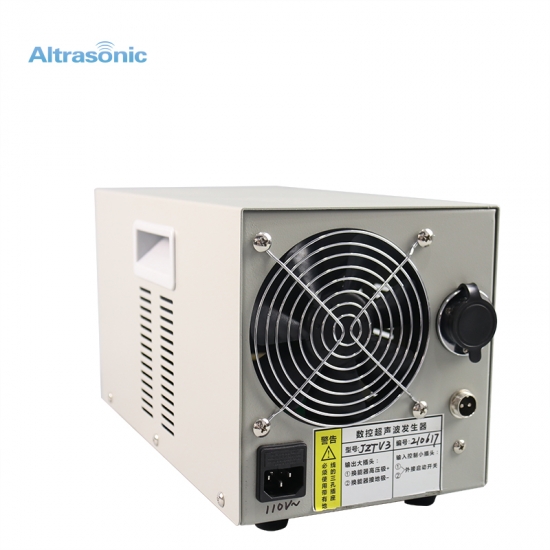

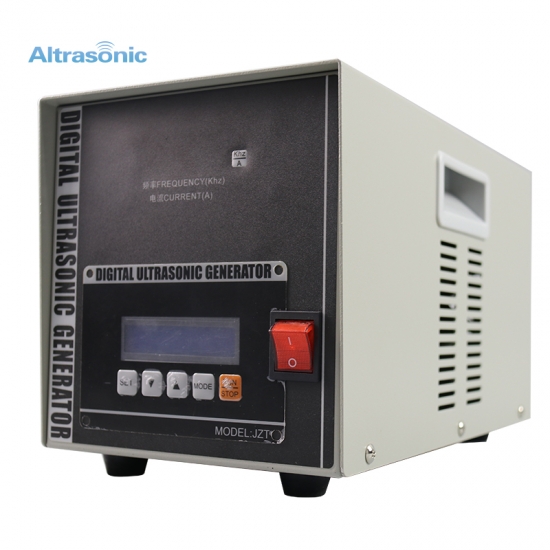

Generator
Digital
Description:
Ultrasonic vibration cutting is a kind of pulse cutting from a microscopic point of view. In a vibration cycle, the effective cutting time is very short, and it is completely separated from the workpiece and the chips for more than 80% of the time. The intermittent contact with the workpiece and the chips reduces the friction, the heat generated is greatly reduced, and the cutting force is significantly reduced, which avoids the "knife" phenomenon in ordinary cutting and does not produce built-up edge. Using this kind of vibration cutting, precision machining can be carried out on ordinary machine tools. The geometric tolerances such as roundness, cylindricity, flatness, parallelism, and straightness mainly depend on the accuracy of the machine tool spindle and guide rail, and can reach close to zero error. It is possible to replace grinding by car, reaming by drilling, and grinding by milling. Compared with high-speed hard cutting, it does not require high machine tool rigidity and does not damage the surface metallographic structure of the workpiece. In the finishing machining of curved contour parts, the profiling machining can be carried out with the help of CNC lathes, machining centers, etc., which can save the expensive purchase cost of CNC grinders.
Advantages:
1. Suitable for processing hard metals, stones, diamonds, with high precision
2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders
3. Diversified tool sizes, the tool head can also be customized according to actual needs
Workshop:
CE:
Shipping:
Payment:
