Sound Intensity Measuring Instrument
Product origin:
ChinaColor:
orange, whiteProduct weight:
10KgShipping port:
Shanghai or Ningbo

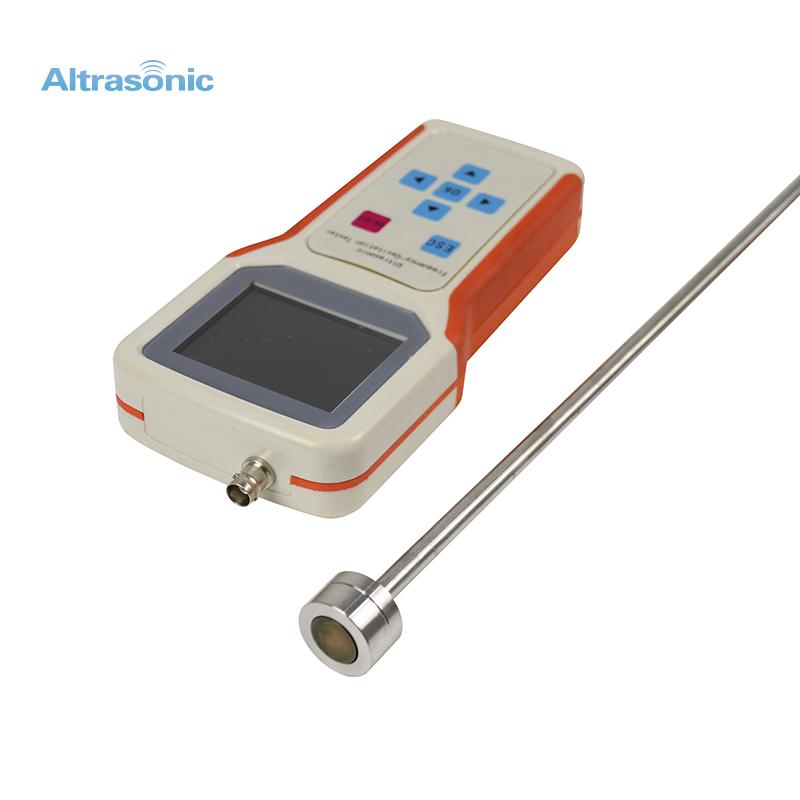

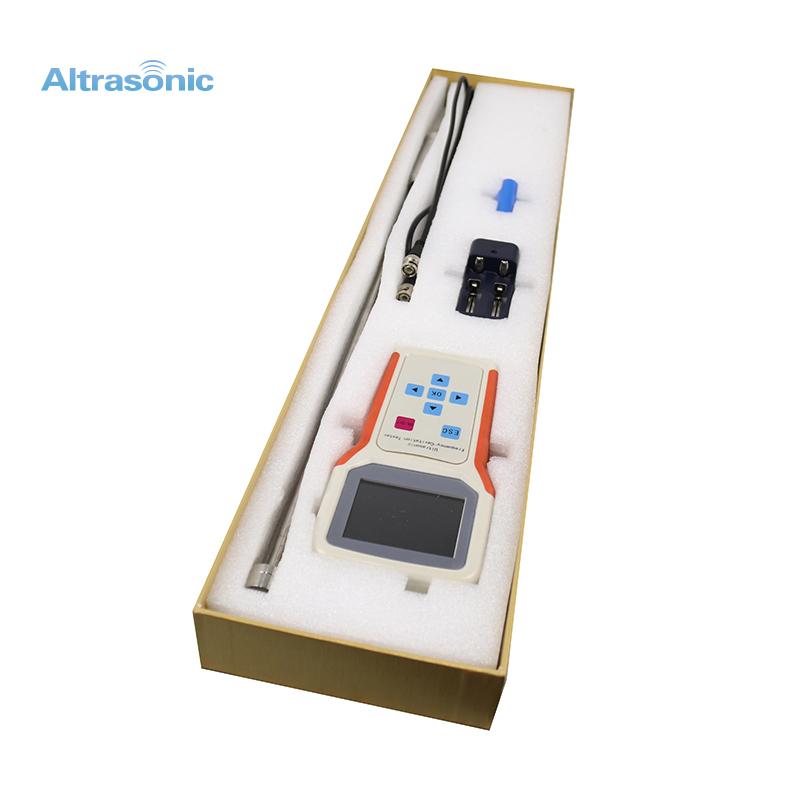

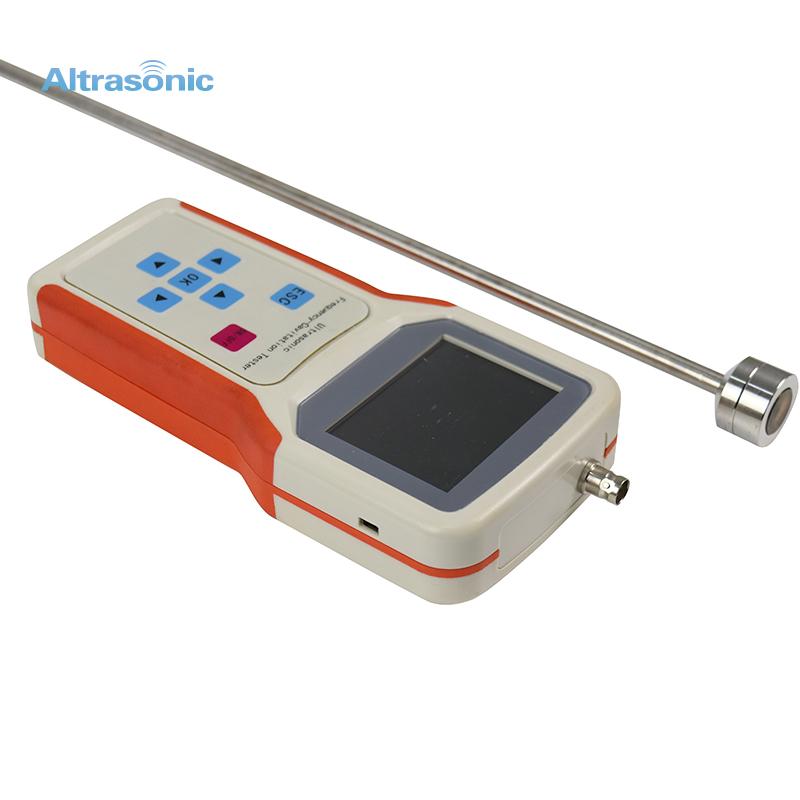

Ultrasonic Sound Meter For Measuring Cleaning Machine Sound Wave
Description:
The ultrasonic strength in the liquid sound field is the most important index of the ultrasonic system. There is a direct influence for the cleaning effect of cleaning machine and work efficiency of the ultrasonic processor.
Parameter:
| Range of Sound Intensity | 0-150 W/cm² |
| Range of Frequency | 5 Khz-1 Mhz |
| Service Temperature | 0-100 °C (common) 0-500 °C (high temperature) |
| Service Medium | PH 4-PH 10 (liquid) |
| Supply Voltage | 220V |
| The Response Duration | less than 0.1 second |
| Length of Probe | 30cm 40cm 50cm 60cm (optional) |
| Material of The Prode | titanium |
|
Size |
10*20*3 cm |
|
Screen |
LCD |
|
Power Supply |
9V Battery or External Power Supply |
Application:
It can be used to detect the ultrasonic intensity distribution adjustment inspection, management, cleaning effect of industrial parts in ultrasonic cleaning tanks, ultrasonic cleaning machines and other ultrasonic devices, analyze ultrasonic irradiation intensity and cleaning effect, etc.
