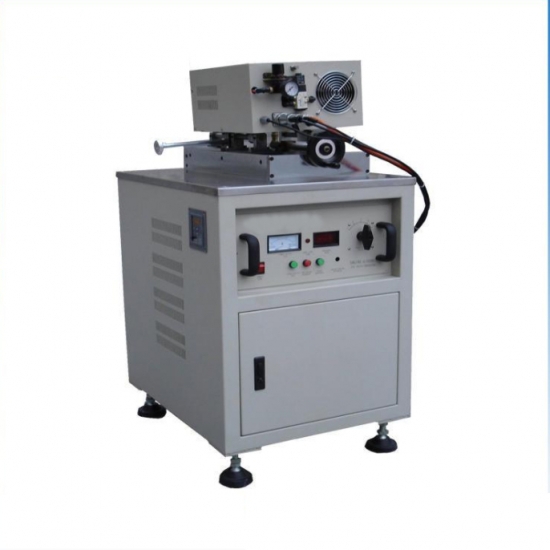

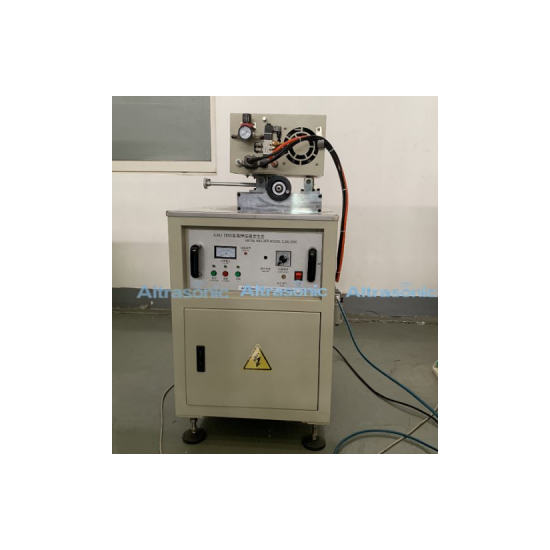

Zhejiang manufacturer ultrasonic aluminum plastic pipe welding machine

Zhejiang manufacturer ultrasonic aluminum plastic pipe welding machine

Specification:

1. Frequency: 20±1kHz

2. Maximum output power: 2000Watt

3. Welding speed: 4-10m/min (according to the thickness of the material)

4. Aluminum welding thickness: 0.2-0.5mm (according to the material)

5. Welding tool head diameter: 51mm in diameter

6. Operation mode: automatic, manual test

7. Working pressure: 0.2-0.6Mpa

8. Power supply: AC220V±5%, 50Hz±1%

9. Dimensions: Generator: 450×600×160mm3 Support: 400×330×220 mm3

10. Working environment temperature: 0-50℃ 11. Motor: three-phase AC 220V conversion motor (51KGV20)

Application:

1. Ultrasonic aluminum-plastic pipe welding can be used for aluminum-plastic composite pipe production line;

2. Solar water heater (welding the heat exchange tube to the board);

3. Electric heating device (aluminum and Cooper heating tube welding);

4. Corrugated aluminum sheet processing;

5. Solar collector plate (welding copper tube and aluminum foil; copper tube and copper foil; welding multiple copper tubes throughout the board).

Advantages:

1. Simple structure and easy installation;

2. Flexible, can be used alone or in other systems;

3. Reliable system to ensure production yield;

4. Unique rotating structure design, no need to replace spare parts, saving cost;

5. The welding tip is made of special steel, which can withstand abrasion through strict production process.
