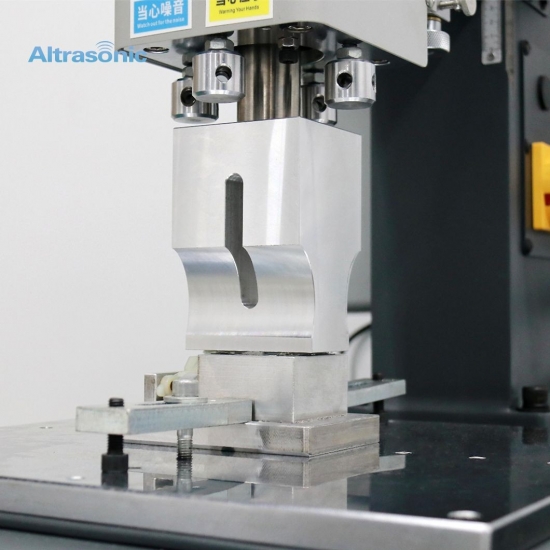

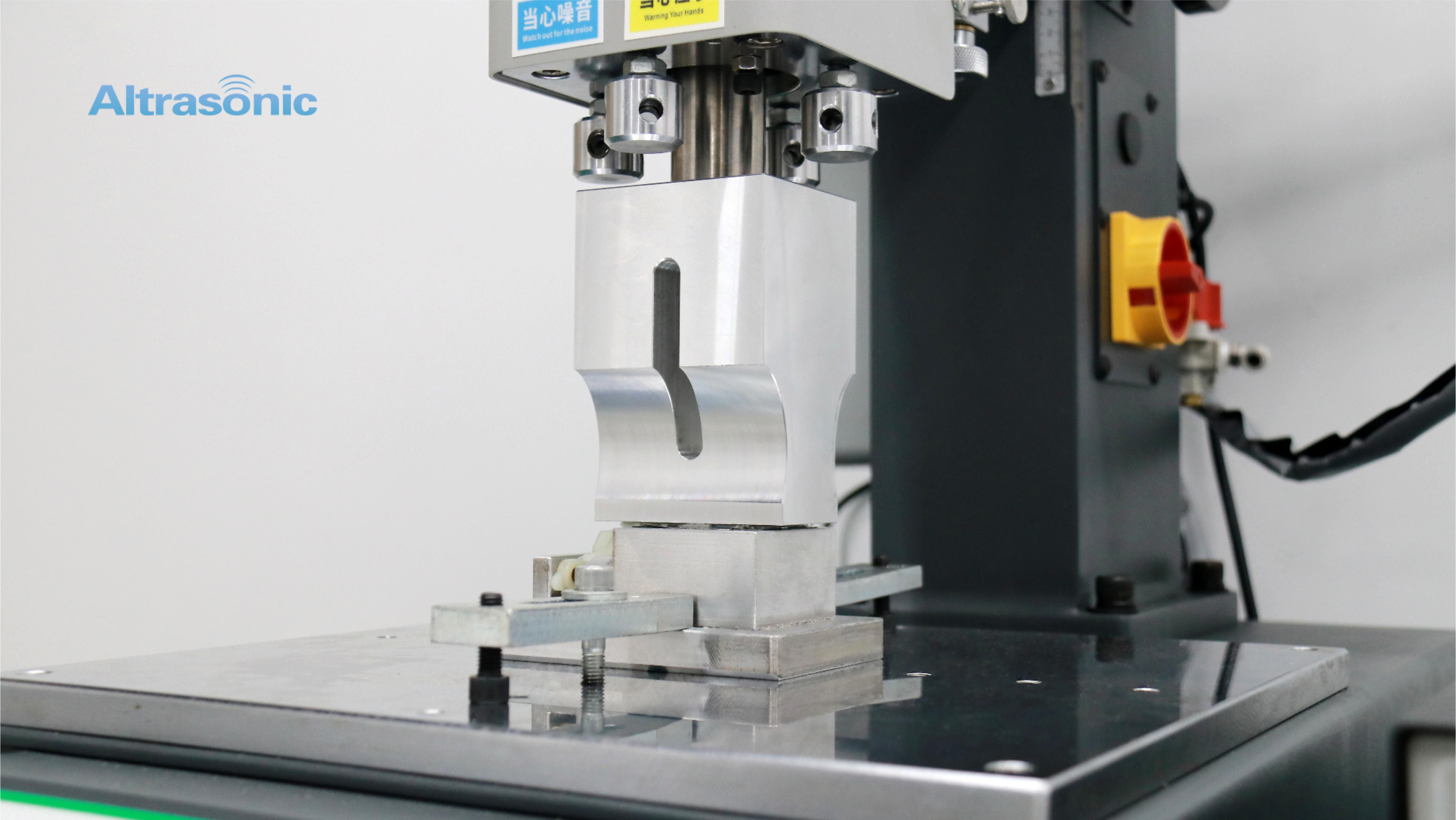

Ultrasonic welding machine by ALTRASONIC TECHNOLOGY is perfect for welding, cutting and punching termoplastics, non-wovens and textiles. Whether for extremely small parts or very large applications. Ultrasonic Plastic Welding Machine can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a 15~40 kHz frequency vibration is emitted. When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs.
Item No.:
HS-W1526-APayment:
T/T, West union, PaypalProduct origin:
ChinaGoods_stock:
9999Product weight:
125kgLead Time:
7

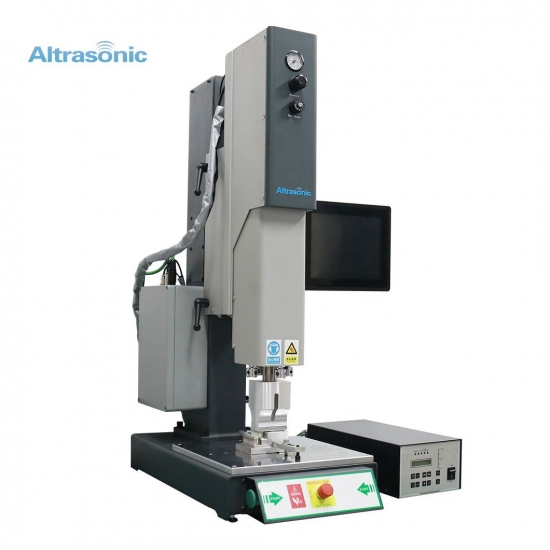

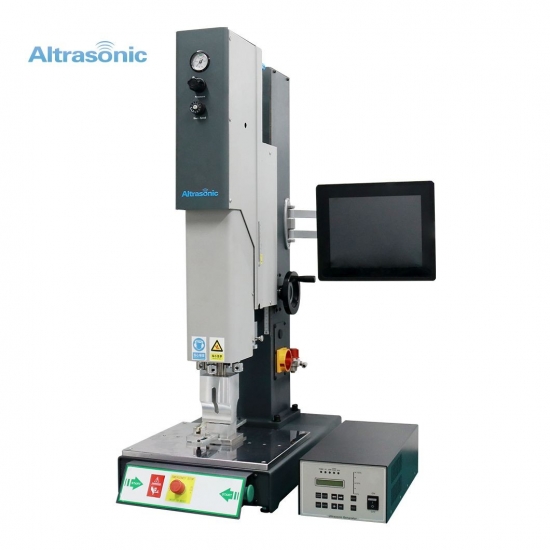

15kHz 2600W All-round Ultrasonic Welding Machine Ultrasonic Welder
FEATURES
Specification:
Item No | HS-W1526-A |
Frequency | 15kHz |
Power | 2600W |
Welding time | 0.01-9.99s |
Air supply |
0.2-0.8MPa |
Drive method | Cylinder drive |
Welding stroke |
85-125mm |
Weight | 125kg |
Size (L*W*H) | 850*420*1200mm |
Application:
Regular section: Steam iron, water dispenser plastic plate, TV set shell, transparent panel of the radio, shaker, portable fluorescent lamp cover, plastic frame of the juicer, vacuum cleaner parts, razor shell, TV set shell screws fixed seat, mosquito reduction lamp shell, washing machine dehydration tank, 3-inch floppy disk, USB connectors, calculator, electronic watch, cell phone shell, setter, switch and socket, pre-paid water meter meter, bluetooth earphone, injection molding parts vibration drop, toy pacifier, ball player card rating card box, ink cartridges, folders, business card holders, photo albums, keychains, plastic lighters, toothpick cases, luggage, seat-sealed containers, hollow plate boxes, lipstick shells, cell phone chargers, power adapters, communication equipment nuts buried, consumables plastic parts, tape, toner cartridges, printer parts, fax machine parts, medical consumables, etc.
Automotive section: Welding of wheel arch cover, welding of headlamp lenses, wheelhouse or underfloor panelling, welding of supports, e.g. for parking sensors, headlamp washing system, side marker lamps or trailer couplings, welding of textile inserts, rear parcel shelves, suspension rails in door panelling, welding or riveting of instrument clusters, airbag covers or door panelling etc.
