15kHz 3600W All-round Ultrasonic Plastic Welding Machine

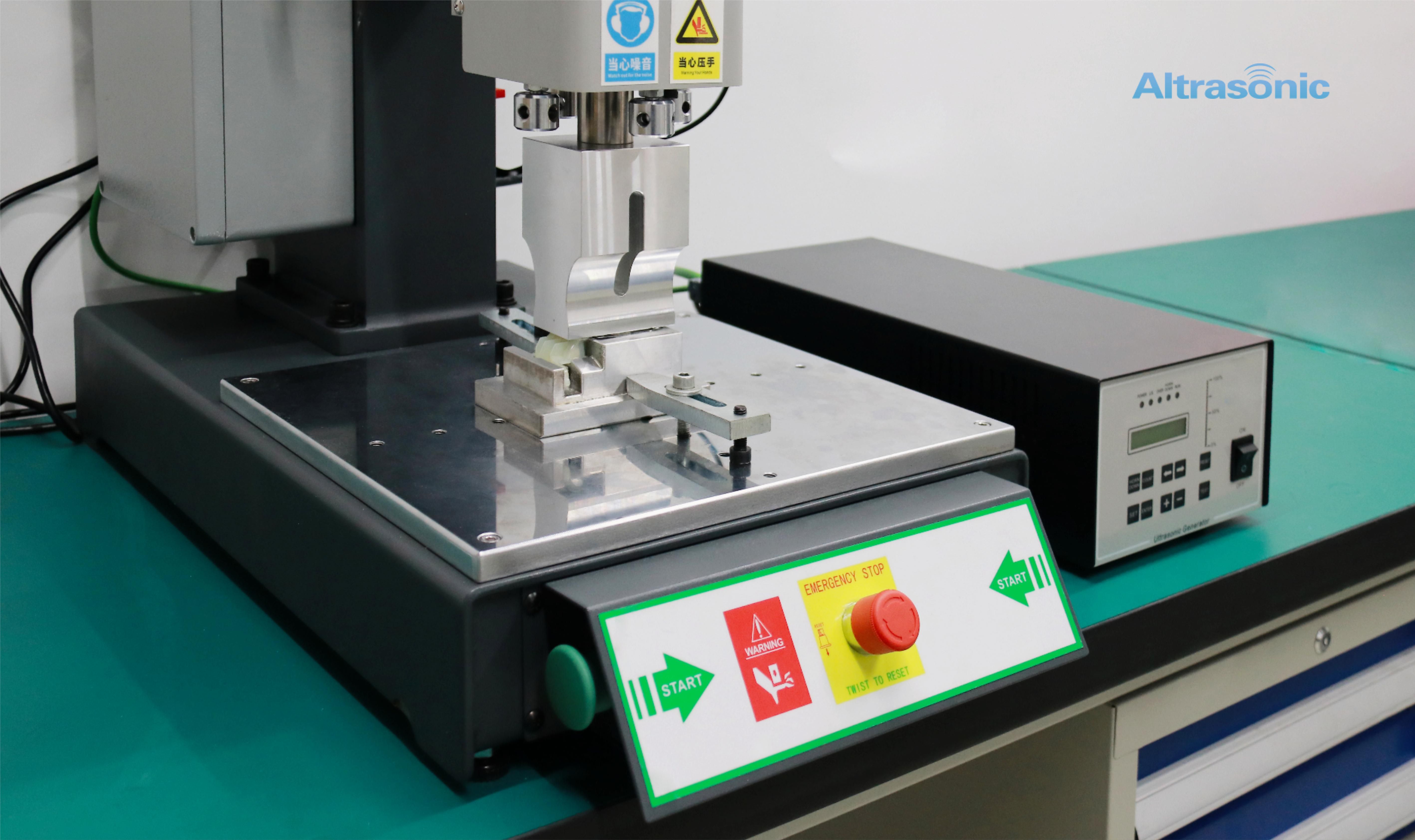

Ultrasonic welding machine by ALTRASONIC TECHNOLOGY is perfect for welding, cutting and punching termoplastics, non-wovens and textiles. Whether for extremely small parts or very large applications. Ultrasonic Plastic Welding Machine can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a 15~40 kHz frequency vibration is emitted. When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. Ultrasonic energy melts the point contact between parts to form a connection. This process is a good automated alternative to glues, screws or snap designs.

Item No.:
HS-W1536-A
Payment:
T/T, West union, Paypal
Product origin:
China
Goods_stock:
9999
Product weight:
125kg
Lead Time:
7

Product Details

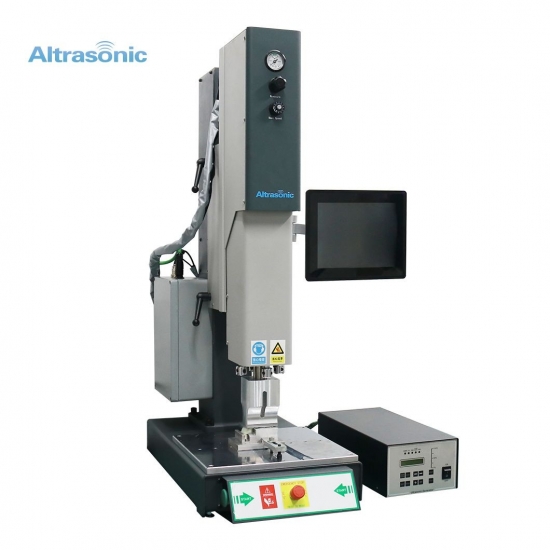

15kHz 3600W All-round Ultrasonic Welding Machine Ultrasonic Welder

FEATURES

■ 10" Industrial computer

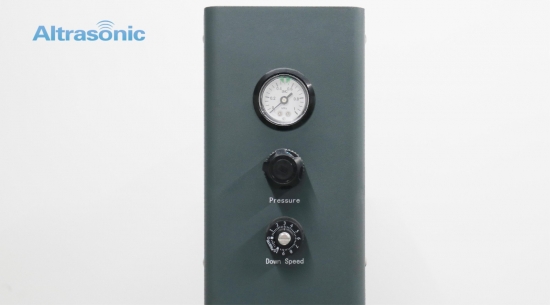

■ Pneumatic height adjustment
■ Real-time frequency auto-tracking display
■ Welding mode: time, energy, distance
■ Amplitude step function
■ Automatic amplitude compensation
■ Mold impedance analysis & protection
■ Overload protections
■ Real-time curves: power, frequency, energy, pressure
■ Quality management (time and energy inter-checking)
■ Welding records (operating statistics)
■ Powerful, high quality, high welding stability

Specification:

Item No	HS-W1536-A
Frequency	15kHz
Power	3600W
Welding time	0.01-9.99s
Air supply	0.2-0.8MPa
Drive method	Cylinder drive
Welding stroke	85-125mm
Weight	125kg
*Size (LWH)*	8504201200mm

Application:

Regular section: Steam iron, water dispenser plastic plate, TV set shell, transparent panel of the radio, shaker, portable fluorescent lamp cover, plastic frame of the juicer, vacuum cleaner parts, razor shell, TV set shell screws fixed seat, mosquito reduction lamp shell, washing machine dehydration tank, 3-inch floppy disk, USB connectors, calculator, electronic watch, cell phone shell, setter, switch and socket, pre-paid water meter meter, bluetooth earphone, injection molding parts vibration drop, toy pacifier, ball player card rating card box, photo albums, keychains, plastic lighters, toothpick cases, luggage, seat-sealed containers, hollow plate boxes, lipstick shells, cell phone chargers, power adapters, communication equipment nuts buried, consumables plastic parts, tape, toner cartridges, printer parts, fax machine parts, medical consumables, etc.

Automotive section: Welding of wheel arch cover, welding of headlamp lenses, wheelhouse or underfloor panelling, welding of supports, e.g. for parking sensors, headlamp washing system, side marker lamps or trailer couplings, welding of textile inserts, rear parcel shelves,,welding or riveting of instrument clusters, airbag covers or door panelling etc.
