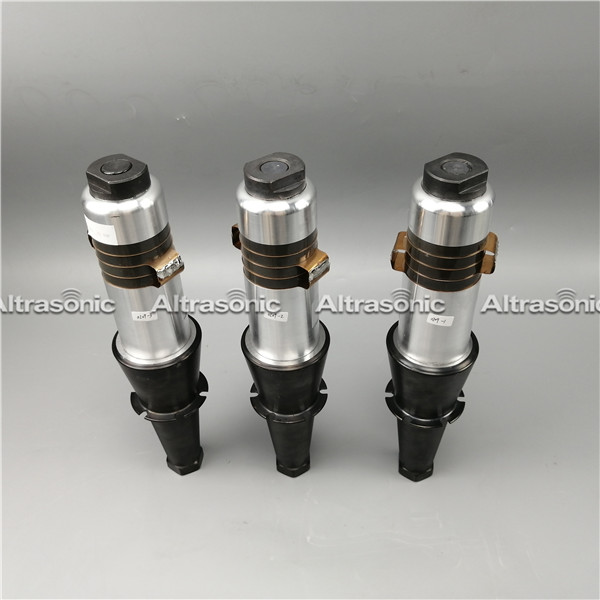

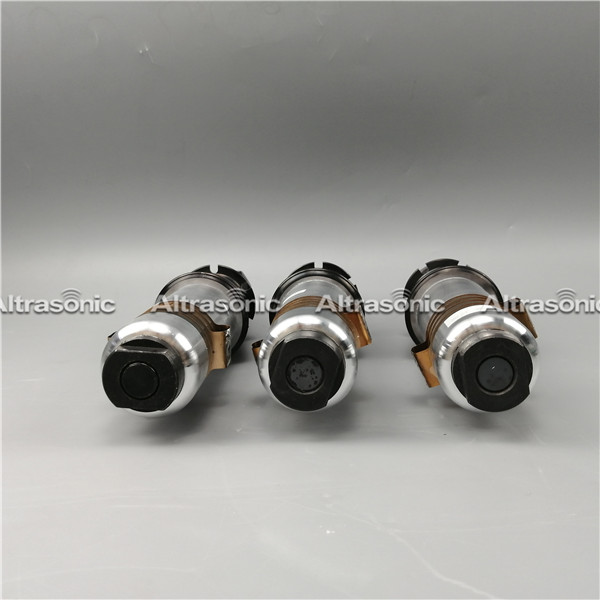

15kHz Ultrasonic Converter for Automatic N95, KN95 Mask Making Machine

15kHz Ultrasonic Converter for Automatic N95, KN95 Mask Making Machine

Description:

Altrasonic 15kHz high-power transducer is suitable for ultrasonic welding machines for producing medical masks. Altrasonic researched and added matching horns to make the ultrasonic welding system run more stable. Perfectly adapted to the requirements of welding multilayer non-woven masks. In the era of pursuing energy saving and environmental protection, the ultrasonic automatic mask welding machine gradually emits luster.

Main Feature:

1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration

3. Having steady output amplitude even the load markedly changed

4. Extended using temperature, ensuring good amplitude linearity

5. Bolt-on mounting gives the fast, easy installation and high reliability

6.easy for assembling

7. good heat resistance

8. large range of working temperature

9.low resonance impedance and heat productivity

10.good construction

11.fastened by bolt

Competitive Advantage:

1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material

3. One by one testing to ensure that each transducer performance are excellent

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability

Specification:

Item No.: HS-6015-4Z

Frequency: 15kHz

Power: 2600Watt

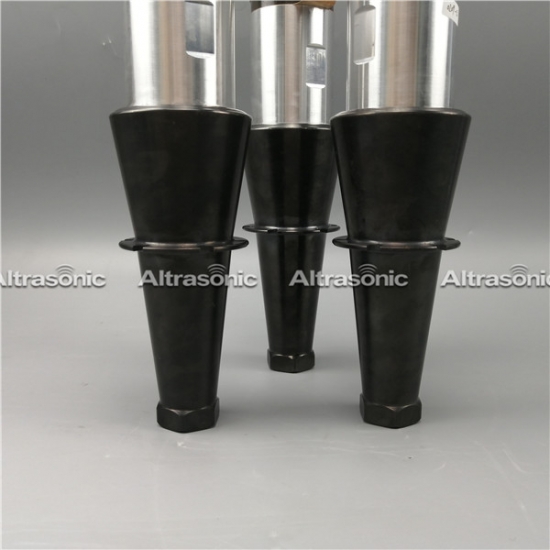

Booster: Titanium alloy or Steel

Diameter of Ceramic: 60mm

Quantity of Ceramic: 4pcs

Connect Screw: M16 X 1

Application:

Non-woven mask

Disposable medical mask

Surgical mask

N95

KN95

Workshop:

CE:

Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
