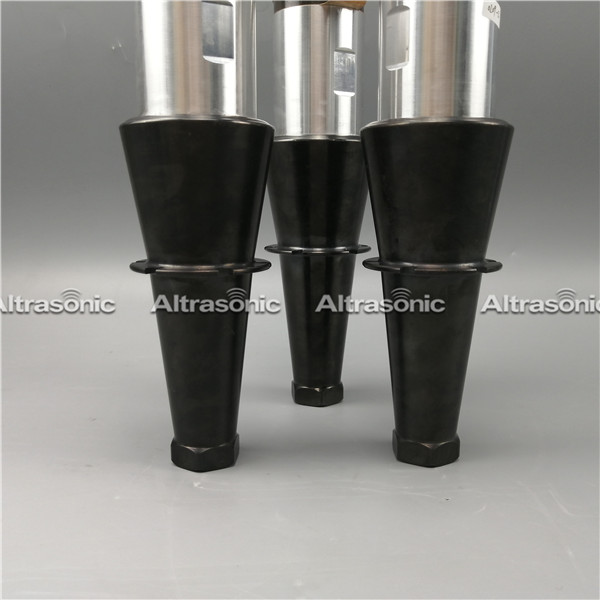

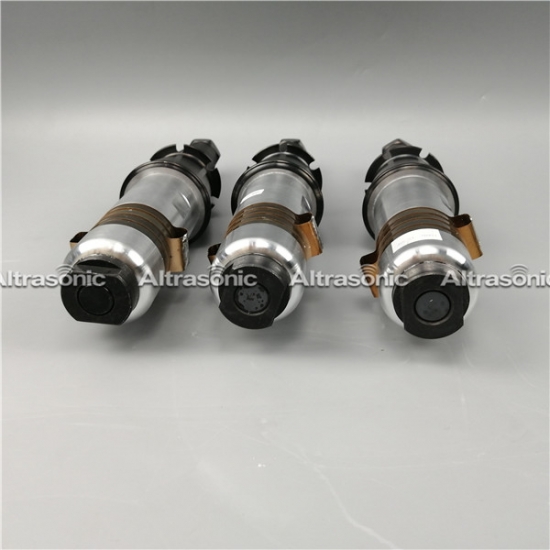

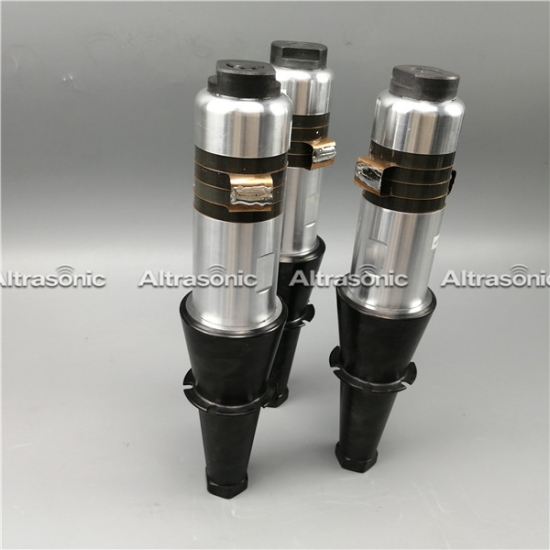

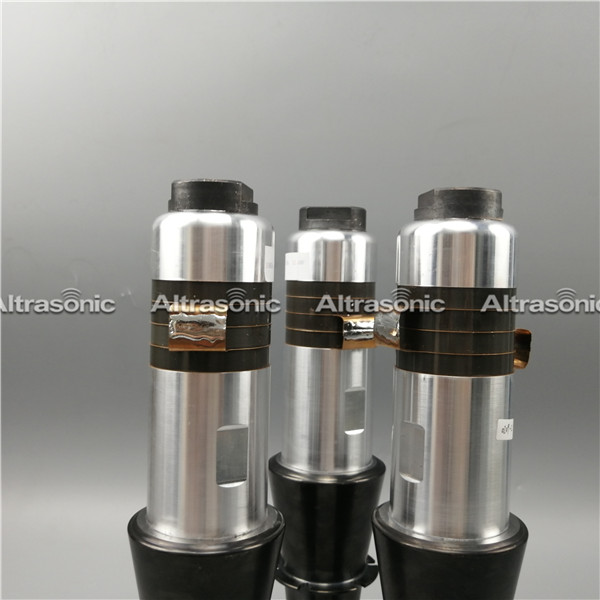

Ultrasonic Converter with Booster 15kHz 2600Watt for Medical Non-woven Mask Machine

Ultrasonic Converter with Booster 15kHz 2600Watt for Medical Non-woven Mask Machine

Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Description:

Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The Ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices. Altrasonic 15kHz high-power transducer is suitable for ultrasonic welding machines for producing medical masks. Altrasonic researched and added matching horns to make the ultrasonic welding system run more stable. Perfectly adapted to the requirements of welding multilayer non-woven masks. In the era of pursuing energy saving and environmental protection, the ultrasonic automatic mask welding machine gradually emits luster.

Specification:

Item No.: HS-6015-4Z

Frequency: 15kHz

Power: 2600Watt

Booster: Titanium alloy or Steel

Diameter of Ceramic: 60mm

Quantity of Ceramic: 4pcs

Connect Screw: M16 X 1

Application:

Non-woven mask

Disposable medical mask

Surgical mask

N95

KN95

Workshop:

CE:

Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
