Our 20 kHz ultrasonic welding equipment offers you maximum flexibility to take advantage of the ultrasonic frequency most commonly used in plastics assembly. 20 kHz is the industry standard for a wide range of applications and thermoplastic parts.
Item No.:
HS-W2020-APayment:
T/T, West union, PaypalProduct origin:
ChinaGoods_stock:
9999Product weight:
125kgLead Time:
7

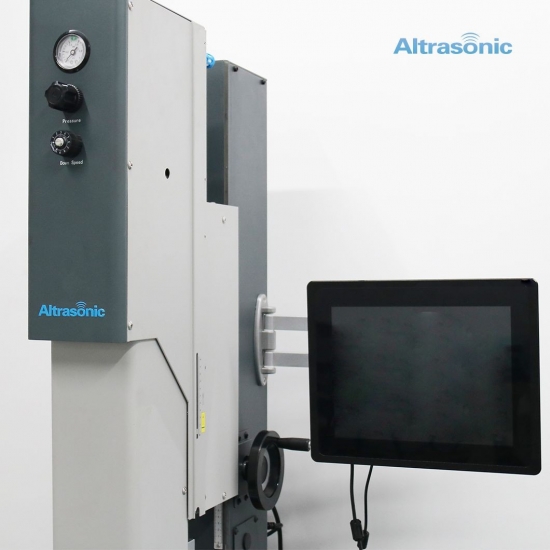

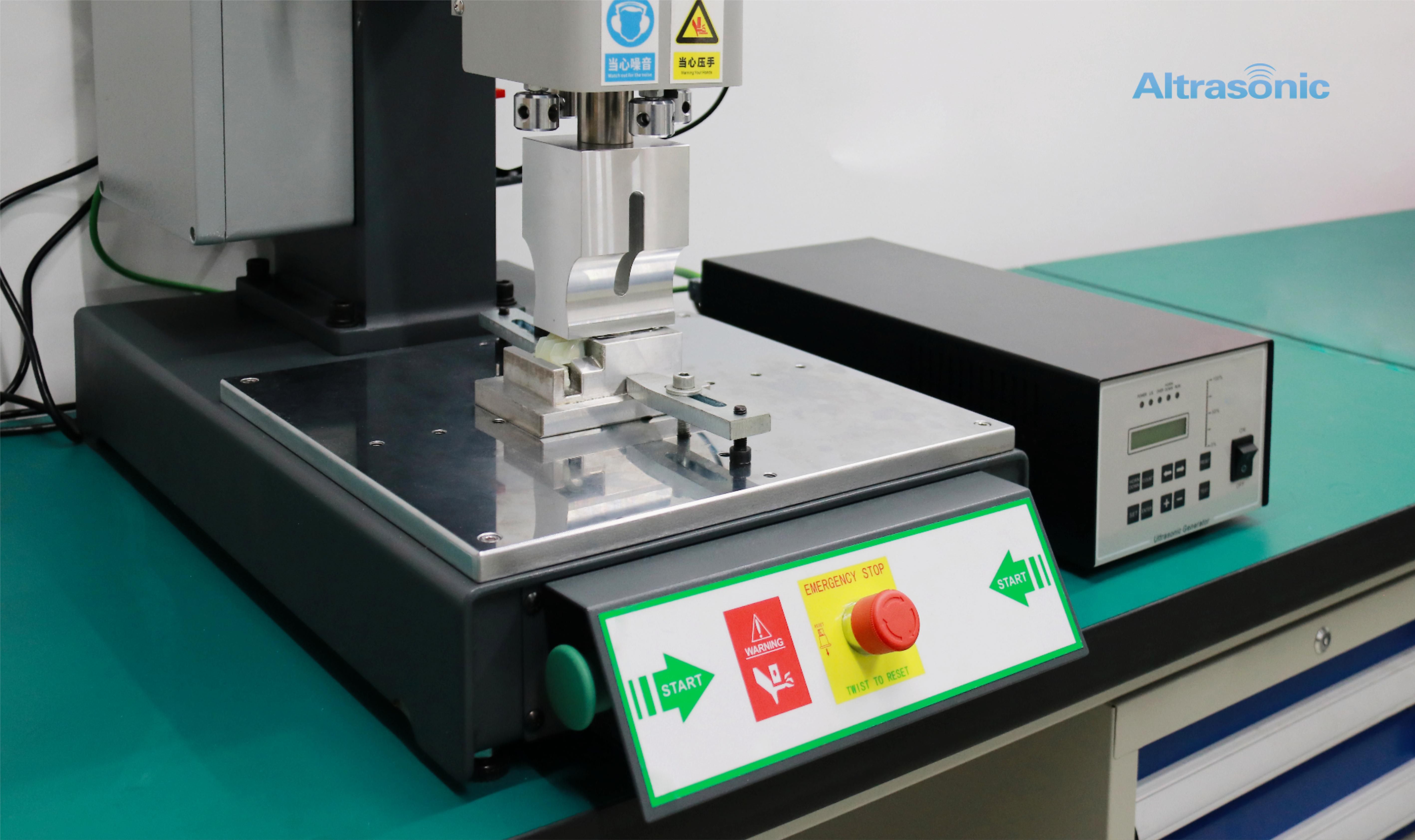

20kHz 2000W Ultrasonic Welder Plastic Welding Machine
FEATURES
Specification:
Item No | HS-W2020-A |
Frequency | 20kHz |
Power | 2000W |
Welding time | 0.01-9.99s |
Air supply |
0.2-0.8MPa |
Drive method | Cylinder drive |
Welding stroke |
85-125mm |
Weight | 125kg |
Size (L*W*H) | 850*420*1200mm |
Application:
Regular section: Steam iron, water dispenser plastic plate, TV set shell, transparent panel of the radio, shaker, portable fluorescent lamp cover, plastic frame of the juicer, vacuum cleaner parts, razor shell, TV set shell screws fixed seat, mosquito reduction lamp shell, washing machine dehydration tank, 3-inch floppy disk, USB connectors, calculator, electronic watch, cell phone shell, setter, switch and socket, pre-paid water meter meter, bluetooth earphone, injection molding parts vibration drop, toy pacifier, ball player card rating card box, photo albums, keychains, plastic lighters, toothpick cases, luggage, seat-sealed containers, hollow plate boxes, lipstick shells, cell phone chargers, power adapters, communication equipment nuts buried, consumables plastic parts, tape, toner cartridges, printer parts, fax machine parts, medical consumables, etc.
Automotive section: Welding of wheel arch cover, welding of headlamp lenses, wheelhouse or underfloor panelling, welding of supports, e.g. for parking sensors, headlamp washing system, side marker lamps or trailer couplings, welding of textile inserts, rear parcel shelves,,welding or riveting of instrument clusters, airbag covers or door panelling etc.
>> Riveting, flanging, seam welding and spot welding thermoplastics
>> Cut’n’seal processes for textiles, fleeces and foils
>> Embedding metal parts
