Altrasonic ultrasonic laboratory and industrial devices are used in different application areas.
Item No.:
HSS20-3000-IPayment:
T/T, PayPal, WWestern UnionProduct origin:
ChinaColor:
Silver and blueShipping port:
Ningbo and ShanghaiLead Time:
30

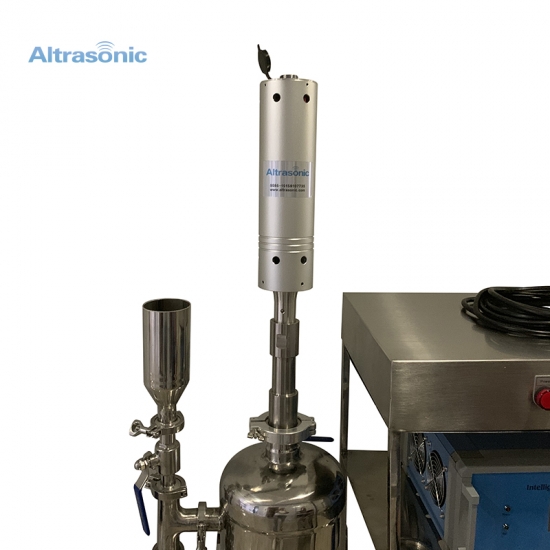

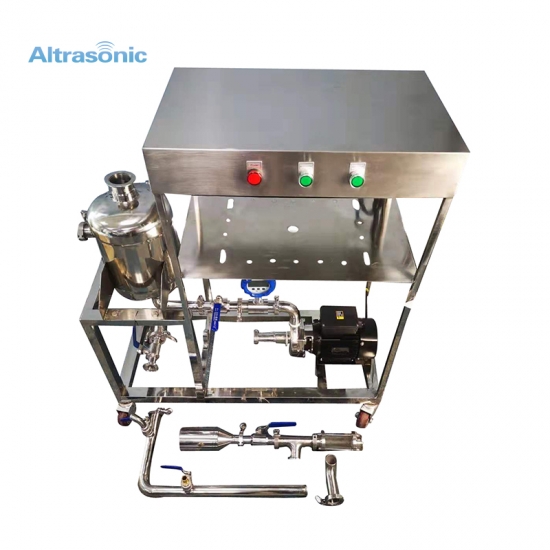

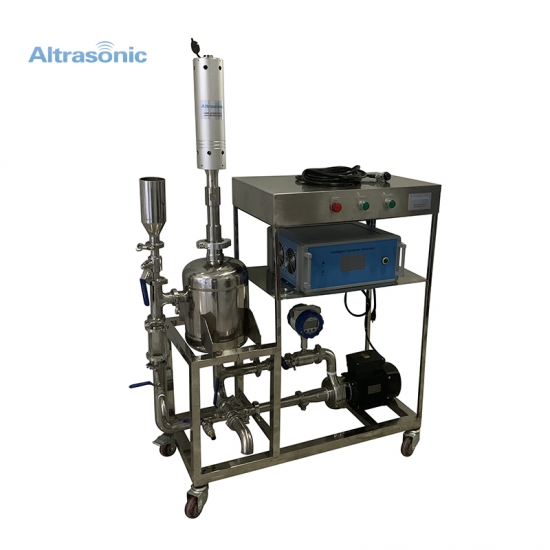

3000watt industrial sonochemical machine ultrasonic extraction equipment for sale
Description:
We provide high tech ultrasonic homogenizer machines, including laboratory and industrial grade, with power range 500watt, 2000watt, 3000watt, 4000watt.
We can supply separate homogenizer system, if need can also configure a circulating material rack for you.
If you need a free consultation, please kindly send inquiry to us, our technical department will evaluate and recommend cost-effective machine.
Specification:
Model |
HSS20-500-L |
HSS20-1000-I |
HSS20-1500-I |
HSS20-2000-I |
HSS20-3000-I |
Frequency |
20±1 kHz |
20±1 kHz |
20±1 kHz |
20±1 kHz |
20±1 kHz |
Power |
500 W |
1000 W |
1500 W |
2000 W |
3000 W |
Voltage |
220±10% V |
220±10% V |
220±10% V |
220±10% V |
220±10% V |
Temperature |
150 ℃ |
150 ℃ |
300 ℃ |
300 ℃ |
300 ℃ |
Pressure |
Normal |
Normal |
35 MPa |
35 MPa |
35 MPa |
Intensity of sound |
＞10 W/cm² |
＞10 W/cm² |
＞30 W/cm² |
＞40 W/cm² |
＞60 W/cm² |
Max Capacity |
＞ 100M L/Min |
＞ 5 L/Min |
＞ 15 L/Min |
＞ 20 L/Min |
＞ 30 L/Min |
Material Of Tip Head |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Application:
1. Breaking up of cells, bacteria, viruses, spores, fungi, or tissues
2. Extraction of ingredients
3. Homogenization of substances of all kinds
4. Production of the finest emulsions with minimal droplet size
5. Dissolution of hard-to-dissolve and extremely hard-to-dissolve substances in fluids
6. Manufacture of dispersions and suspensions
7. Catalysis and acceleration of chemical reactions
Characteristic:
1. Ultrasound probe is imported titanium alloy material, durable
2. Energy-efficient transducer to ensure a strong effect
3. Amplitude automatic adjustment, the load situation of the different amplitude consistent
4. Working hours, ultrasound can set the interval
5. Microcomputer control, ultrasonic power continuously adjustable
6. Integrated sample temperature control to prevent overheating
7. Speakers are separated by a special sound insulation, sound insulation
Workshop:
CE:
Shipping:
Payment:
