Ultrasonic milling equipment can be used for finishing of metal hard materials.
Item No.:
HS-M20Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and GreenShipping port:
Shanghai or NingboLead Time:
45
Auxiliary processing Rotary Ultrasonic Vibration Machining for Opal products
Specification:
Item No.: HS-M20
Frequency: 20kHz
Power: 500Watt
Speed: 20,000RPM
Amplitude: 10um or more
Diameter of Horn:
Milling: Φ1-Ф13mm
Drilling:Ф2-Ф6mm

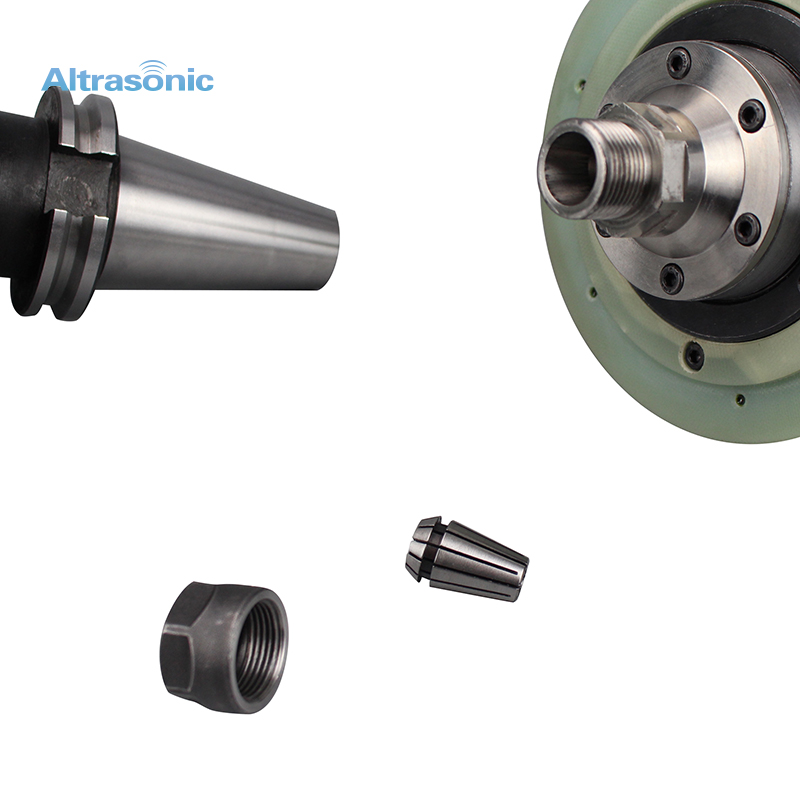

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT
(Special spindles are made per request.)
Description:
We provide high tech ultrasonic rotary milling system, which could be used on CNC machinery.
We have spindle taper selection BT30/40/50, HSK63A, CT40 and so on...
If you are not sure whether your application is suited for ultrasonic assembly, please contact with us. We are here to help you.
The function of various parts are described below:
1. Transducer: The transducer mainly consists of a cylinder which is made up of piezoelectric ceramic. It converts electrical energy into mechanical vibration. Transducer then vibrates sonotrode at low amplitude and high frequency.
2. Sonotrode: It is made of low carbon steel. One end of it is connected with the transducer and other end contains tool. The sonotrode vibrates at low amplitude and high frequency and removes material from the w/p by abrasion where it contacts it.
3. Generator: The generator consists of an electronic oscillator which produces an alternating current at high frequency. The frequency produced is usually in 20kHz in ultrasonic range.
Workshop:
CE:
Shipping:
Payment:
