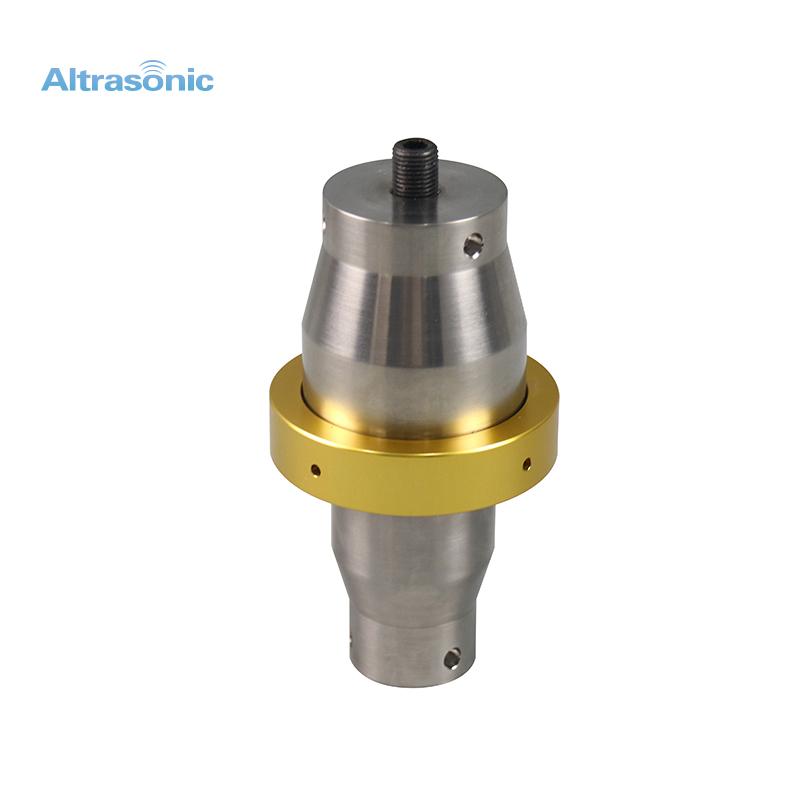

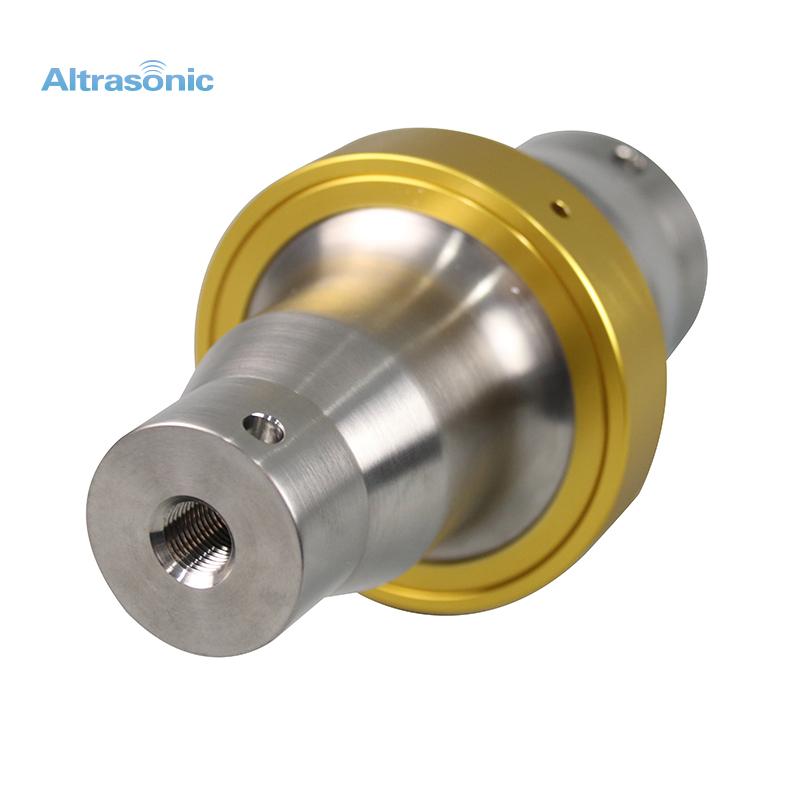

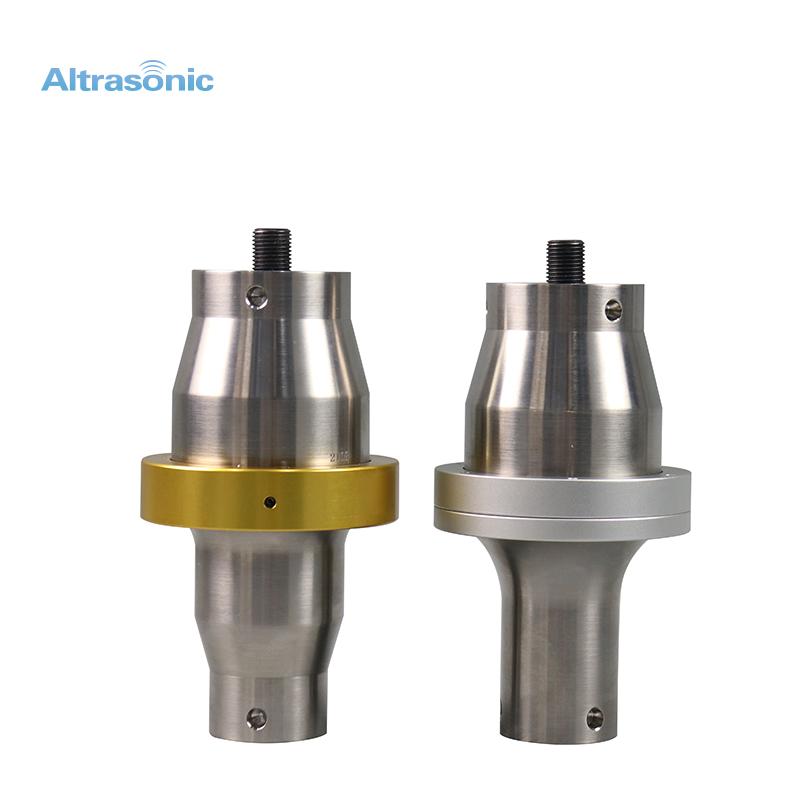

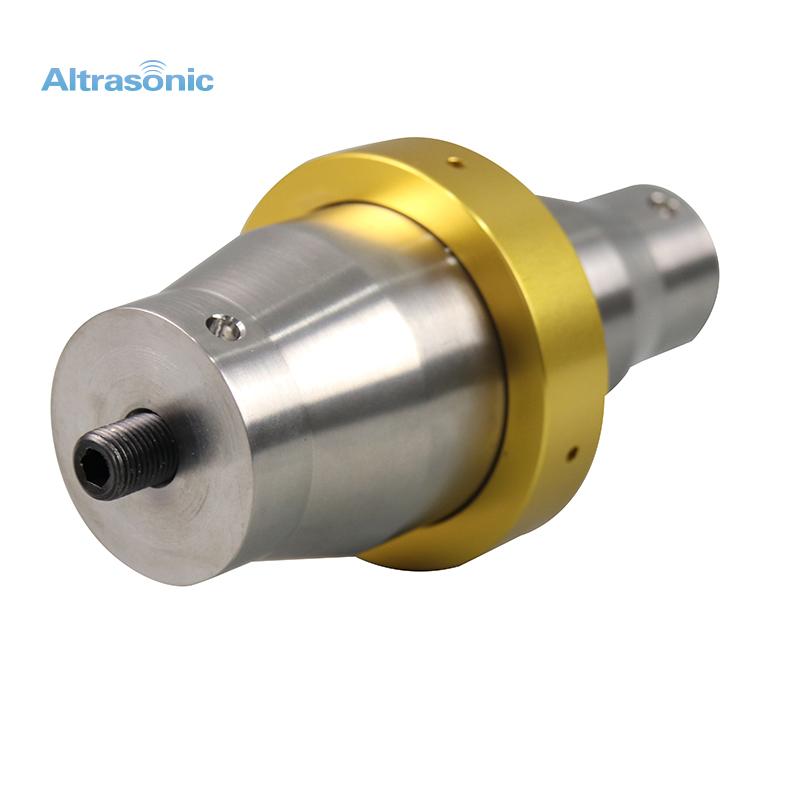

The Ultrasonic booster is a one half-wavelength long resonant section made of aluminum or titanium. It is mounted between the Ultrasonic converter and the Ultrasonic horn, and modifies the amplitude of vibration applied to the Ultrasonic horn.
Item No.:
HS-BBPayment:
TT, West union, PaypalProduct origin:
ChinaColor:
SilverShipping port:
Hangzhou or Shanghai
Description:
The success of an ultrasonic plastics assembly application is dependent on the required force, time, and velocity factor to obtain the correct energy level. The ultrasonic velocity factor is obtained by using the correct ultrasonic horn and ultrasonic booster combination to provide the optimum amplitude for the type of plastic, size of part, and type of assembly to be per-formed. Since it may be technically impractical to design the correct amplitude into the ultrasonic horn because of its shape, ultrasonic boosters are used to either increase or decrease the amplitude at the ultrasonic horn face to transmit the required energy to the joint interface.
Specification:
1. Altrasonic Boosters are available with ratios of:
1:0:5 reduce the amplitude / vibrations.
1:1.0 keep the amplitude without change.
1:1.5 increase the amplitude / vibrations.
1:2.0 increase the amplitude / vibrations.
Special ratios are made per request.
2. Altrasonic Boosters are available with materials of:
Aluminum
Titanium alloy
Steel
3. Altrasonic Boosters are available with frenquencies of:
20 kHz
30 kHz
35 kHz
Special frenquencies are made per request.
Advantage:
1. Integration:
Designed for the assembly into ultrasonic welding machines and special actuators
2. Versatile use:
The ideal booster for every application thanks to a great range of amplifications factors and materials
3. Reliable:
Heavy duty
4. High quality:
Low-loss and true to amplitude
5. Clamping:
Rigid storing in clamp housing
Ultrasonic boosters are widely used in ultrasonic systems. It is mainly used in chemical, petroleum, plastic welding, metal welding, drilling, milling, machining and many other fields.
