The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations.
Item No.:
HS-D41S30Payment:
T/T, Paypal, Western UnionPrice:
$788/PCProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or NingboLead Time:
7

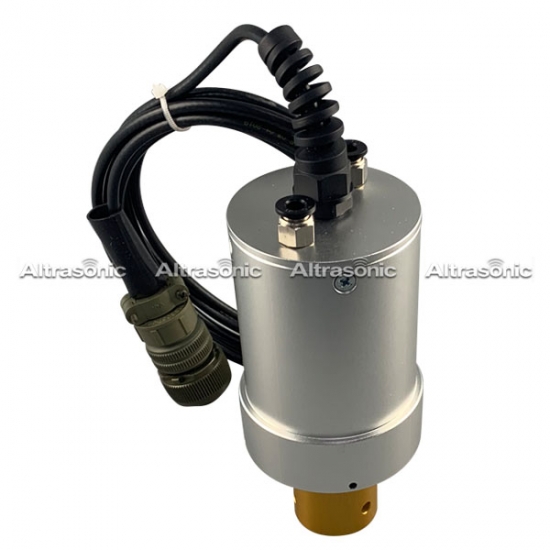

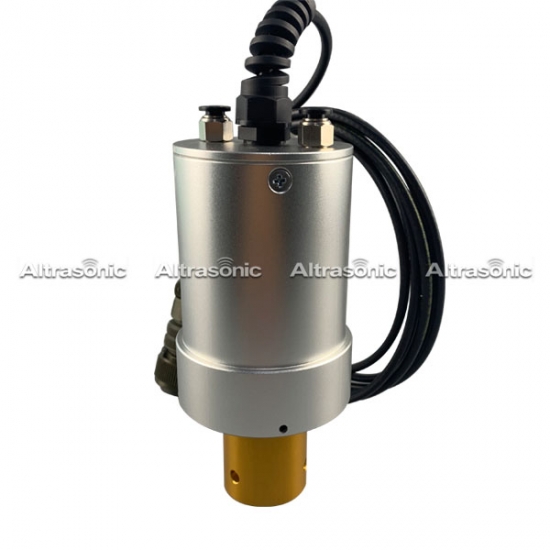

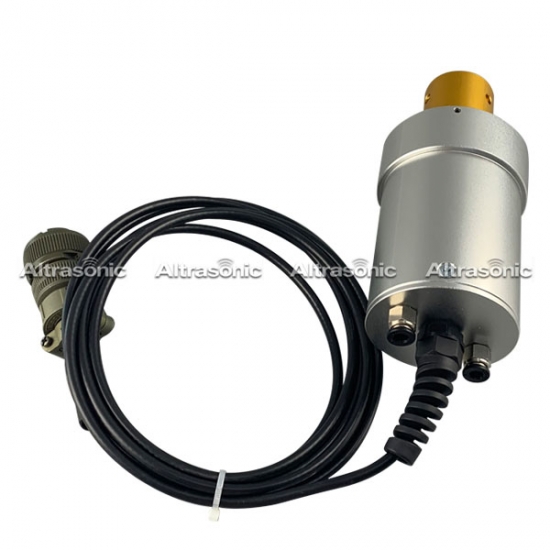

Replacement Dukane 41S30 Ultrasonic Converter Ultrasonic Accessories
Description:
Dukane 41S30 Replacement Ultrasonic Converter Ultrasonic Welding Transducer is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specification:
| Model | HS-D41S30 |
| Frequency | 20 khz |
| Output power | 1000-3000 watt |
| Joint bolt | M18 *1.5 |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 11000pf |
| Amplitude | 20 um |
| Application | welding machine |
Our transducer can applied in the following ultrasonic machines:
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
