We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
Item No.:
HS-D41C30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or NingboLead Time:
7

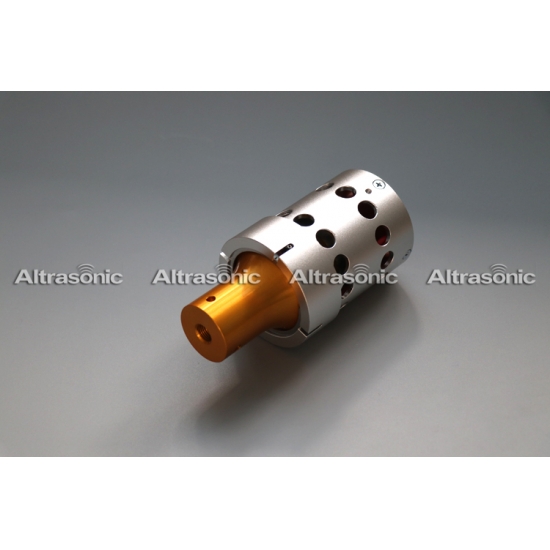

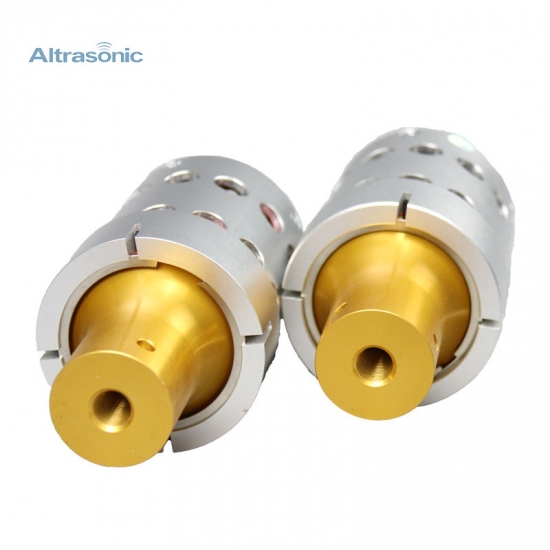

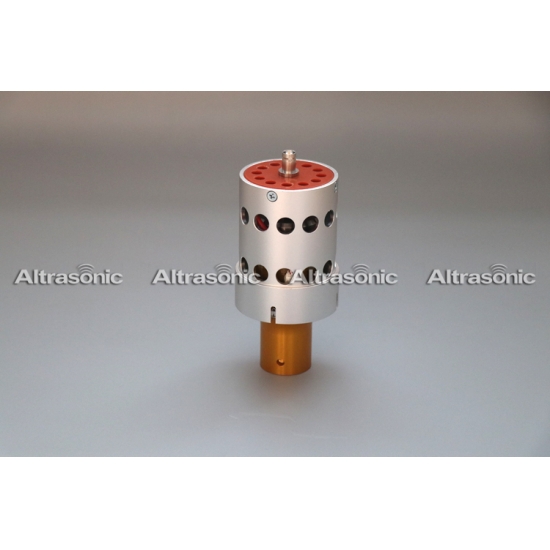

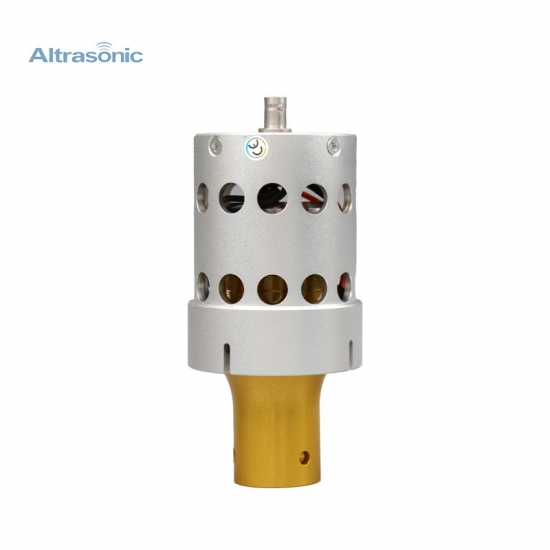

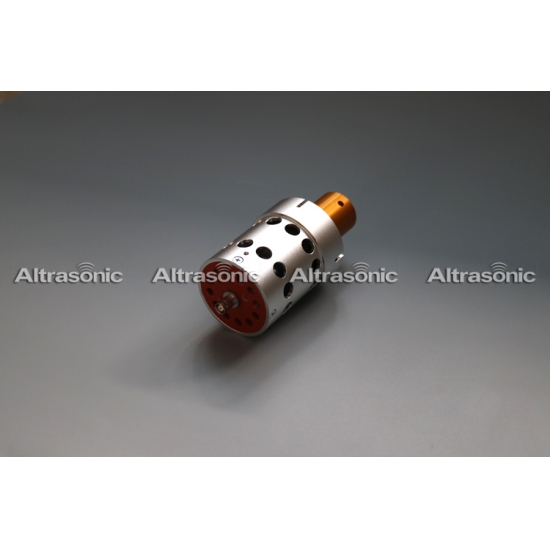

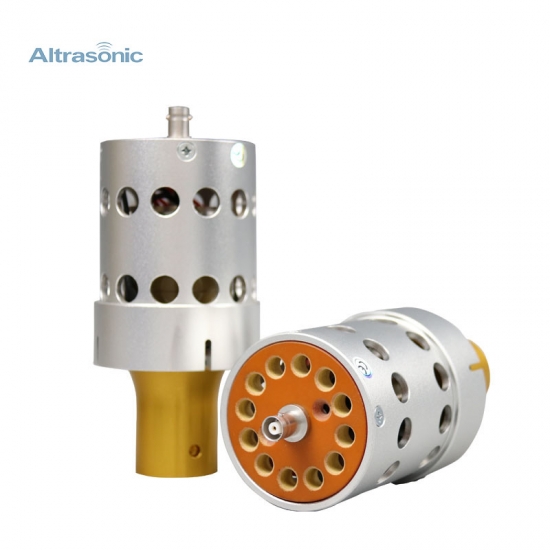

Ultrasonic Parts Replacement Ultrasonic Dukane41C30 Transducer
Description:
Ultrasonic transducer is the core part of the whole machine, which converts electrical energy into mechanical energy through piezoelectric ceramic (PZT) piezoelectric effect. Our transducer Direct replacement for the Dukane 41C30 and has lower cost, rugged quality and superior value.We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
Specification:
| Model | Replacement Dukane 41C30 |
| Frequency | 20kHz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-17 nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Replacement Item:
| Item No | Connect Screw (Size) | Ceramic diameter (mm) |
Qty of ceramic (PC) |
Frequency(khz) | Resistance(Ω) | Color of ceramic | Capacitance | Input Power (W) |
| Branson CJ20 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 502 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 402 | M8*1.25 | 25 | 4 | 39.60 | 10 | Yellow | 4200 | 800 |
| Branson 4TH | M8*1.25 | 25 | 4 | 39.90 | 10 | Yellow | 4200 | 800 |
| Branson 902 | 1/2-20UNF | 40 | 4 | 19.85 | 10 | Yellow | 8000 | 1100 |
| Branson 922J | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 2200 |
| Dukane 40K | M8*1.25 | 35 | 2 | 39.80 | 5 | Gray | 3000 | 800 |
| Dukane 20K | 1/2-20UNF | 50 | 2 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3122 | 1/2-20UNF | 50 | 4 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3168 | 1/2-20UNF | 45 | 2 | 19.50 | 10 | Yellow | 4000 | 800 |
| Rinco 35K | M8*1.25 | 25 | 2 | 34.80 | 50 | Yellow | 2000 | 900 |
| Rinco 20K | M16*2 | 50 | 2 | 19.90 | 50 | Yellow | 5000 | 3000 |
| Telsonic 35K | M8*1.25 | 25 | 4 | 35.00 | 5 | Yellow | 4000 | 1200 |
| Telsonic 20K | 1/2-20UNF | 50 | 4 | 20.00 | 3 | Yellow | 10000 | 2500 |
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
