With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionPrice:
$799/899Product origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or Ningbo

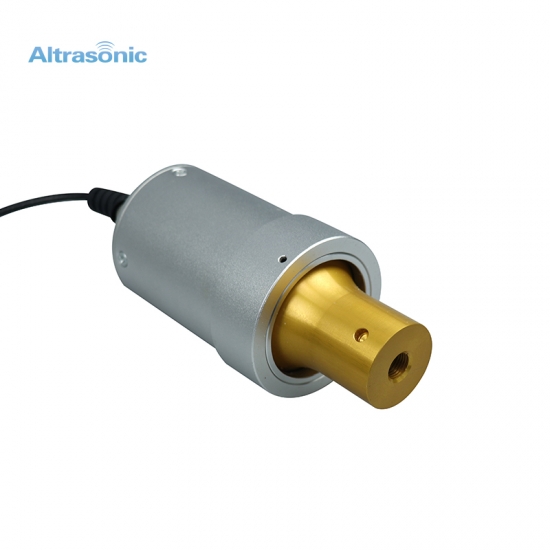

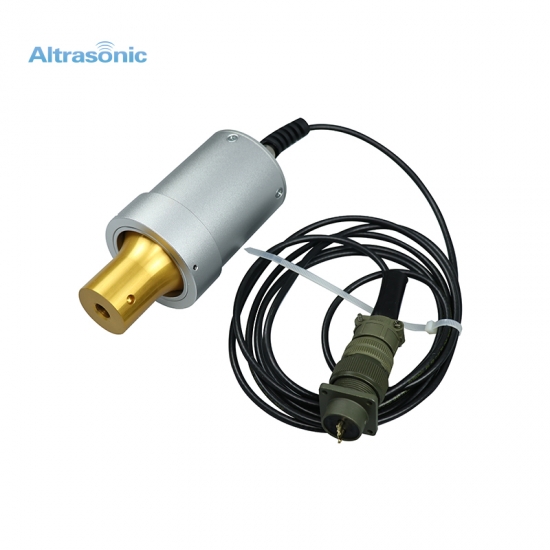

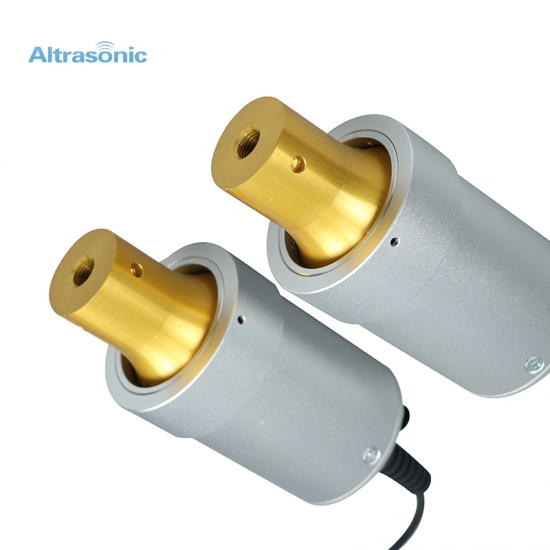

Aluminum Protective 20khz Dukane 41S30 Ultrasonic Welding Transducer Replacement
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
