With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionPrice:
$799/899Product origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or Ningbo

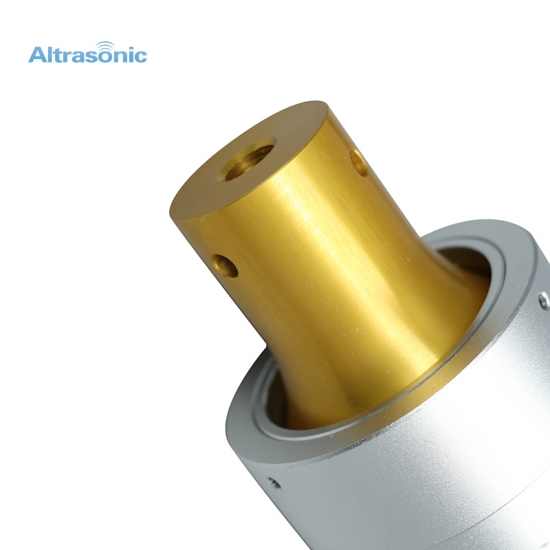

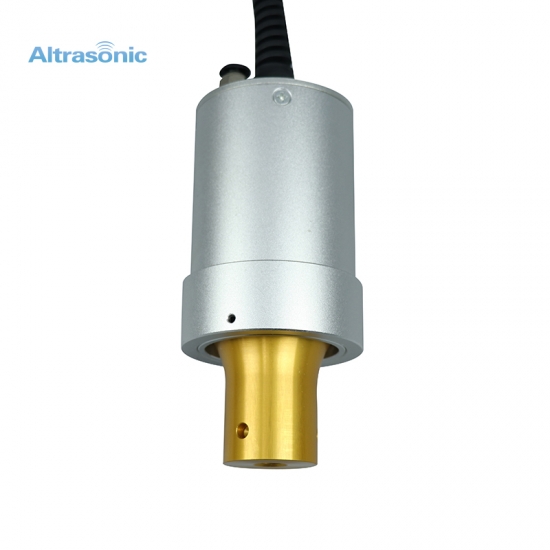

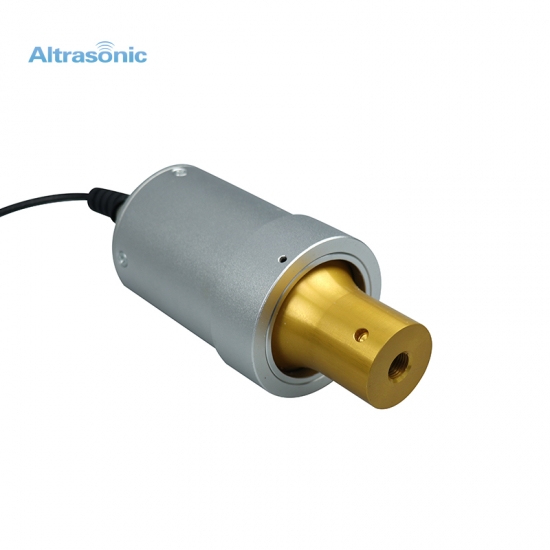

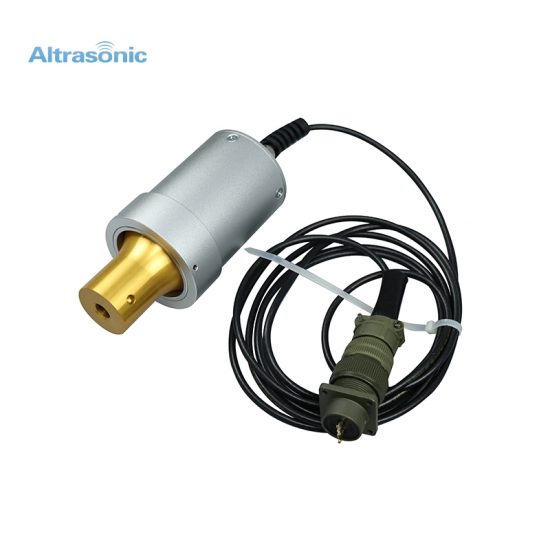

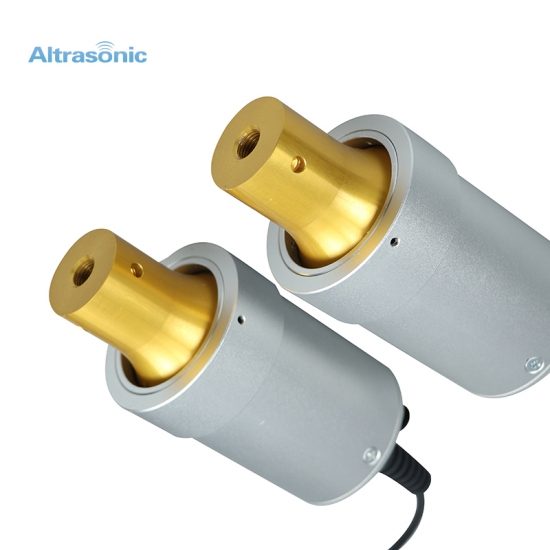

Dukane 41S30 Replacement Ultrasonic Converter Type Frequency 20kHz Transducer dukane series welding transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
