With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D110-3122Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or Ningbo
Specification:
Item No
HS-D110-3122
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Resistance
10 Ω
Amplitude
12 um
Application
Plastic welding machine
Description:

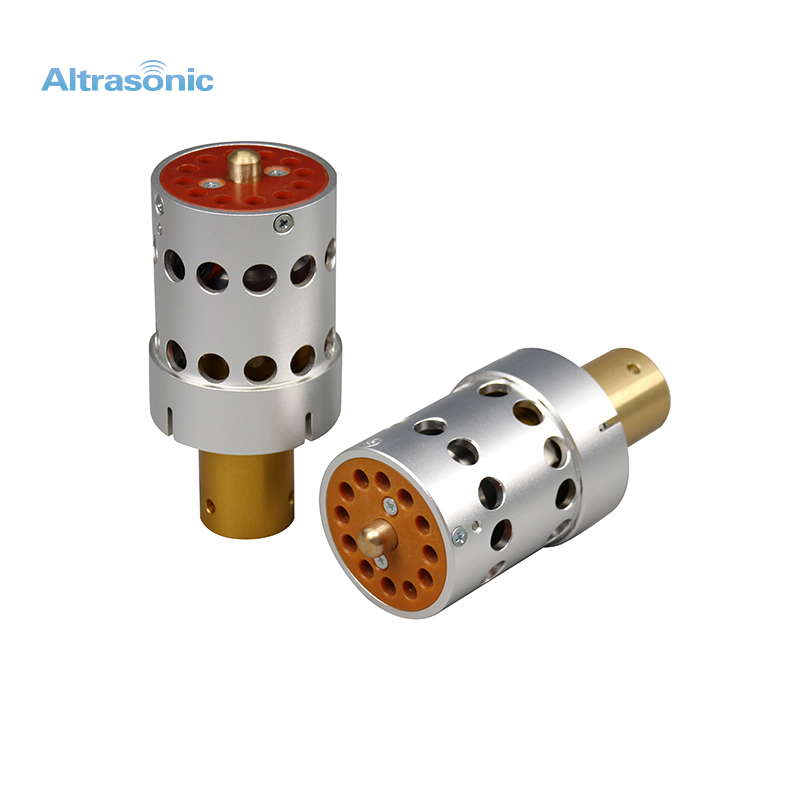

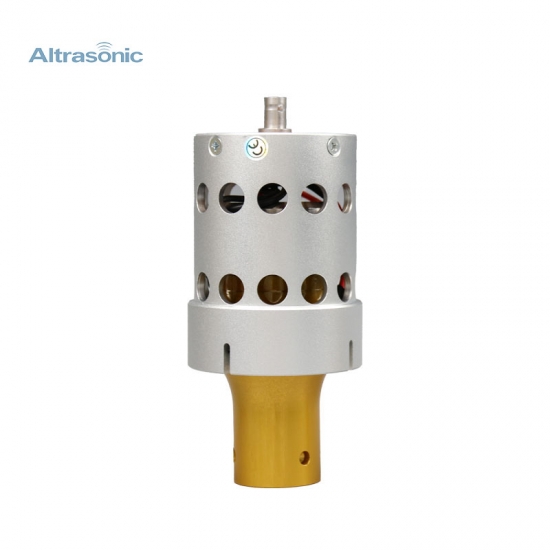

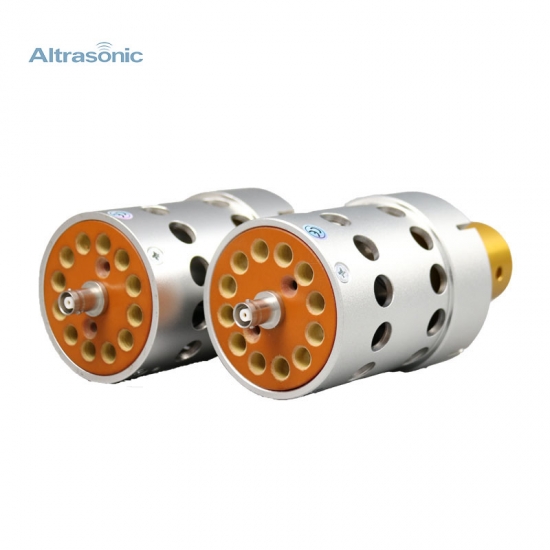

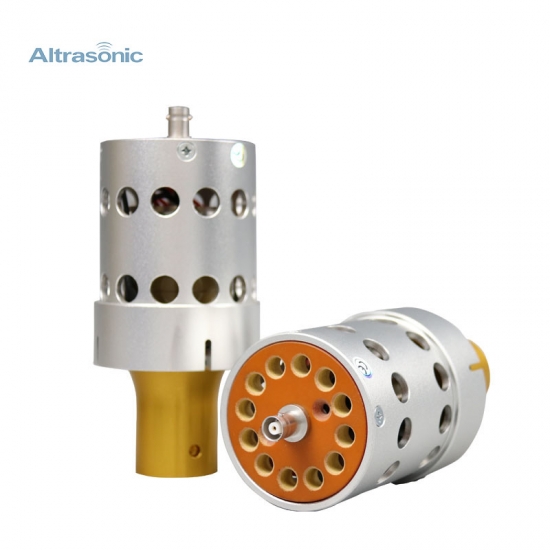

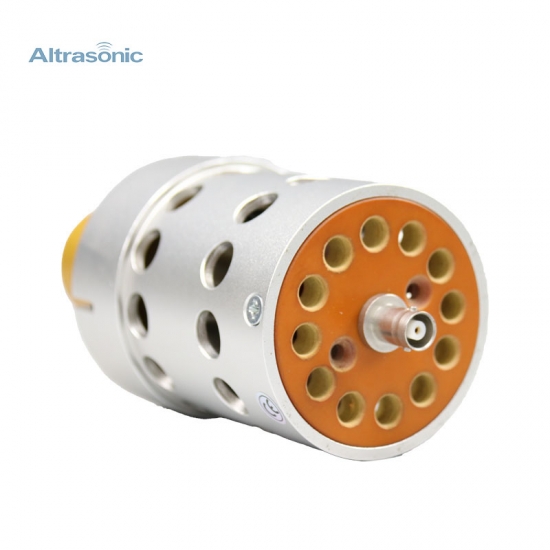

The Replacement Converter for Dukane 20khz machine Direct replacement for the Dukane 20khz machine that delivers lower cost, rugged quality and superior value.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Previous :
20kHz 2000watt Ultrasonic Converter Replacement Dukane 41c30 Welding Transducer ConverterNext :
Good After-Sales Service 20kHz 2000watt Ultrasonic Welding Converter Replacement Dukane 41c30 Ultrasonic Transducer SensorIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.
Replacement Dukane 110-3122 Converter, used for Dukane plastic welding machine.
The 20kHz High Power Ultrasonic Welding Transducer, replacement converter for Dukane type 41S30, is applied to Dukane type ultrasonic welding machine.
Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
