With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:

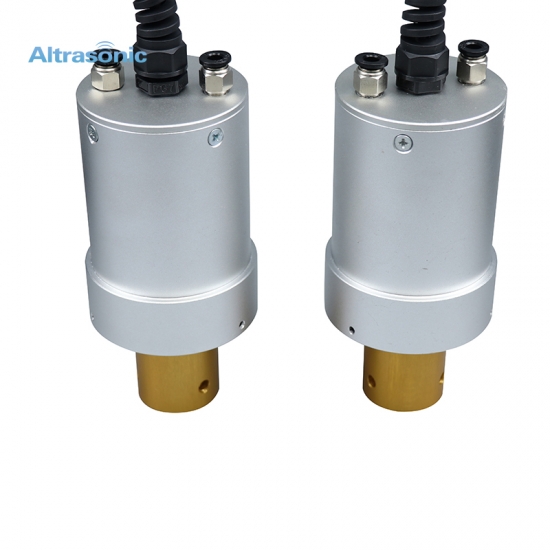

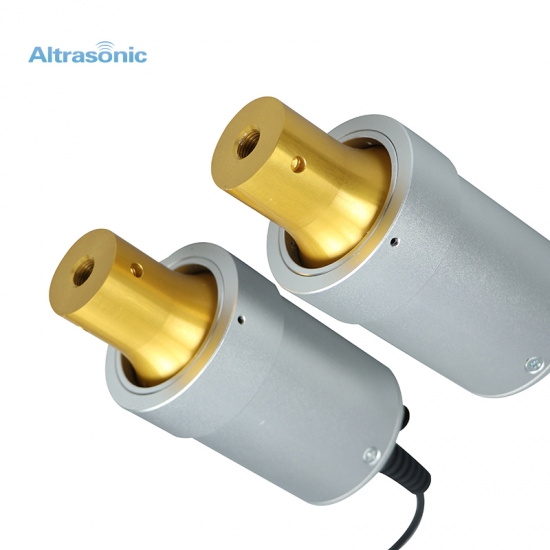

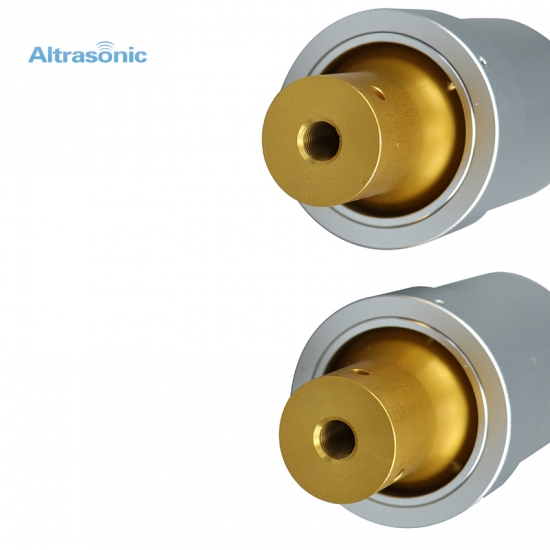

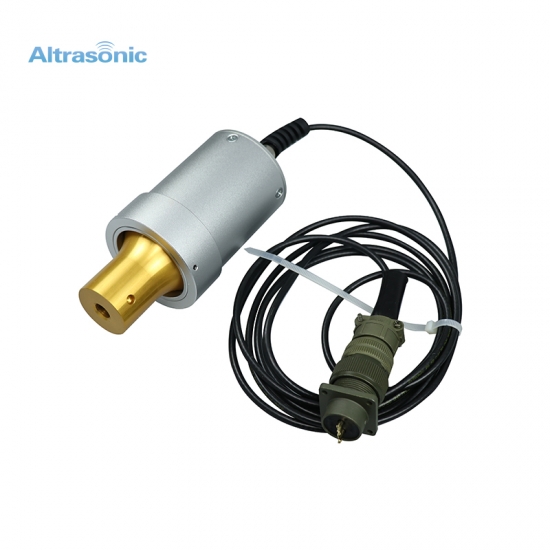

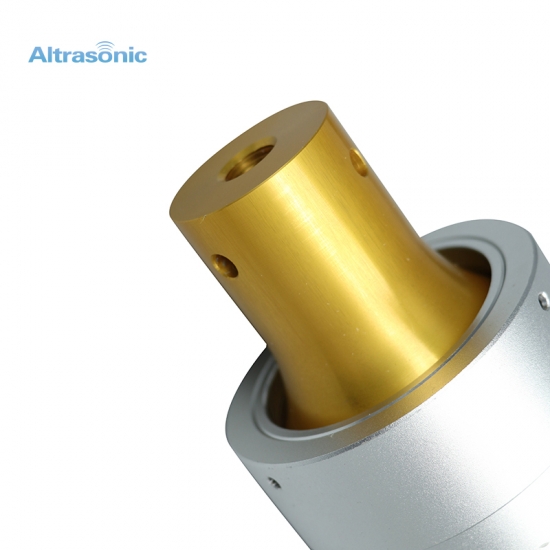

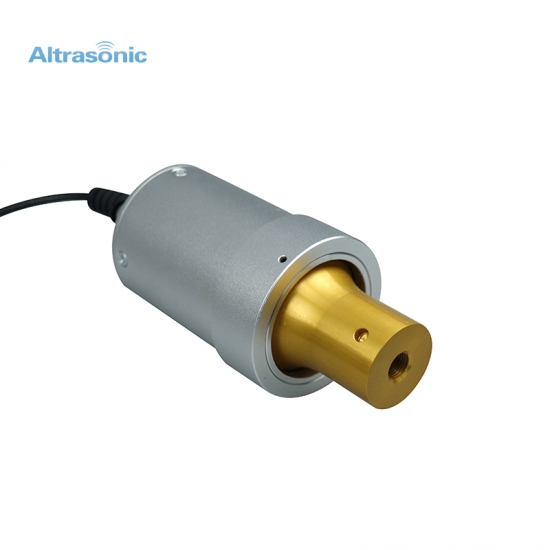

Shanghai or Ningbo20Khz Dukane 41S30 High Power Ultrasonic Converter Replacement For Dukane ultrasonic cutter and welder transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The insufficiency of the electromagnetic acoustic transducer (EMAT) design theory severely limits the further development of electromagnetic ultrasonic test technology. To fundamentally solve this problem, the electromagnetic ultrasonic surface wave transducer used for surface inspection of aluminum plates is implemented. Through three-dimensional finite element modeling and simulation analysis, the geometric parameters of the transducer are found to have a major impact on the transduction efficiency of EMAT. For this reason, from the built model, the orthogonal experimental design method is used to select the factors that affect the efficiency of the transduction.The key parameters determine the basic principles of EMAT design, and optimize the design of the EMAT coils and the permanent magnets in turn.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Previous :
20Khz Replacement For Dukane ultrasonic cutter and welder transducerNext :
20Khz Dukane 41S30 High Power Ultrasonic Converter Replacement For Dukane ultrasonic cutter and welder transducerIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
