With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:

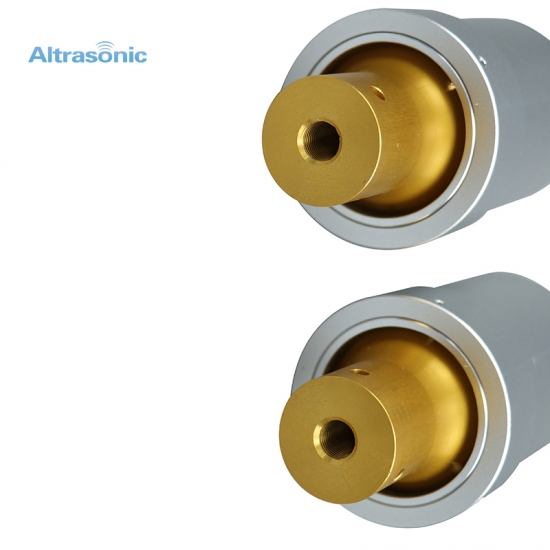

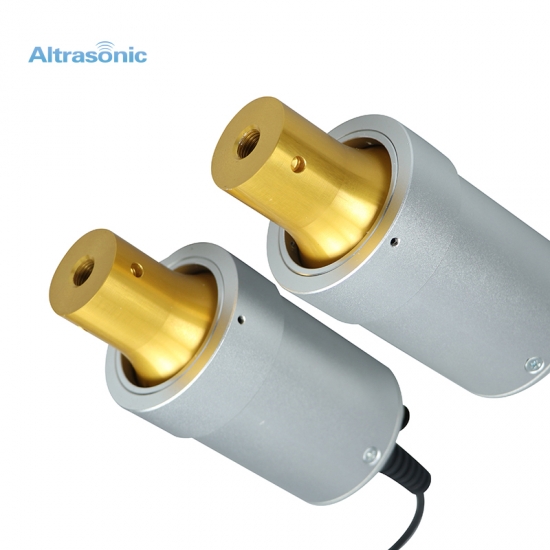

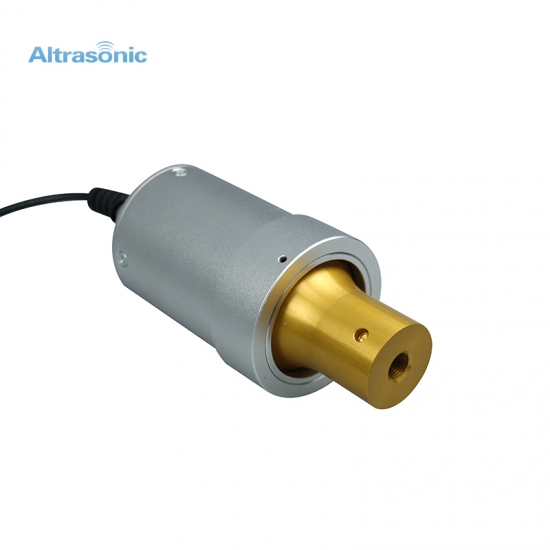

Shanghai or Ningbo20Khz Dukane 41S30 High Power Ultrasonic Converter Replacement For Dukane ultrasonic cutter and welder transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The ultrasonic piezoelectric transducer is an energy conversion system that converts the electrical energy output by the ultrasonic power supply into mechanical vibration in the ultrasonic vibration processing
The impedance characteristics and mechanical vibration characteristics are significantly different at different operating frequencies, so how to match the ultrasonic piezoelectric transducer to an appropriate operating frequency is the key to improving the quality of vibration processing
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
